DAHUA ASA2212A Standalone Fingerprint Mifare Card Time Attendance with Door Access Control Package

RM692.90RM758.90

or 3 payments of RM230.97 with

Purchase this product and earn 693-759 Points

Unit Sold : 69

Clear
SKU: DAHUA ASA2212A Package Categories: ,

Description

Product Highlights

  • Smartpss management (Version 2.02 or above)
  • Door control or external bell
  • Fingerprint, card or password verification methods.
  • Support IC (Mifare 1)13.56MHZ card
  • Support 6 kinds of state keys:Check-In, Check-Out, Break-Out,Break-In ,OT-In,OT-Out
  • Add user in batch
  • 1.3MP Camera (build in) support to capture the real time photos
  • USB flash upgrades firmware
  • Support to configure timetable and shift standalone
  • USB flash export attendance report
  • T9 input method
  • Touch keypad and LCD display
  • All users allowed querying his attendance records
  • Within SD card storage photos

Product Technical Specifications

System
Main Processor ARM9
Memory 128MB RAM + 32MB Flash
Interface
RJ45 10/100Mpbs
Input Exit button x 1
Output Relay x 1 (for Lock /External Bell)
USB host
Camera 1.3MP (build in)
Card Read
Read Format IC (Mifare)
Read Range 3-8cm (max.)
Fingerprint Read
Response Time ≤0.15s
FAR ≤0.00004%
FRR ≤0.15%
Capacity
Fingerprint 3,000
User 1,000
Record 150,000
Function
Attendance Mode Fixed / Flexible
Relay Mode Door Control / External Bell
User Level User / Administrator
State key Check-In ,Check-Out/Break-In,Break-Out/OT-In,

OT-Out

General
Voice Prompt Yes
Power Supply 9-15DC/200mA
Operating Temperature -10°C to +55°C
Working Humidity 5%–95%
Dimension(W×D×H) 192mm×160mm×32mm
Weight 0.35Kg
Working Environment Indoor
Certificates
CE Yes
FCC Yes
Platform
Smartpss Ver2.02 or above

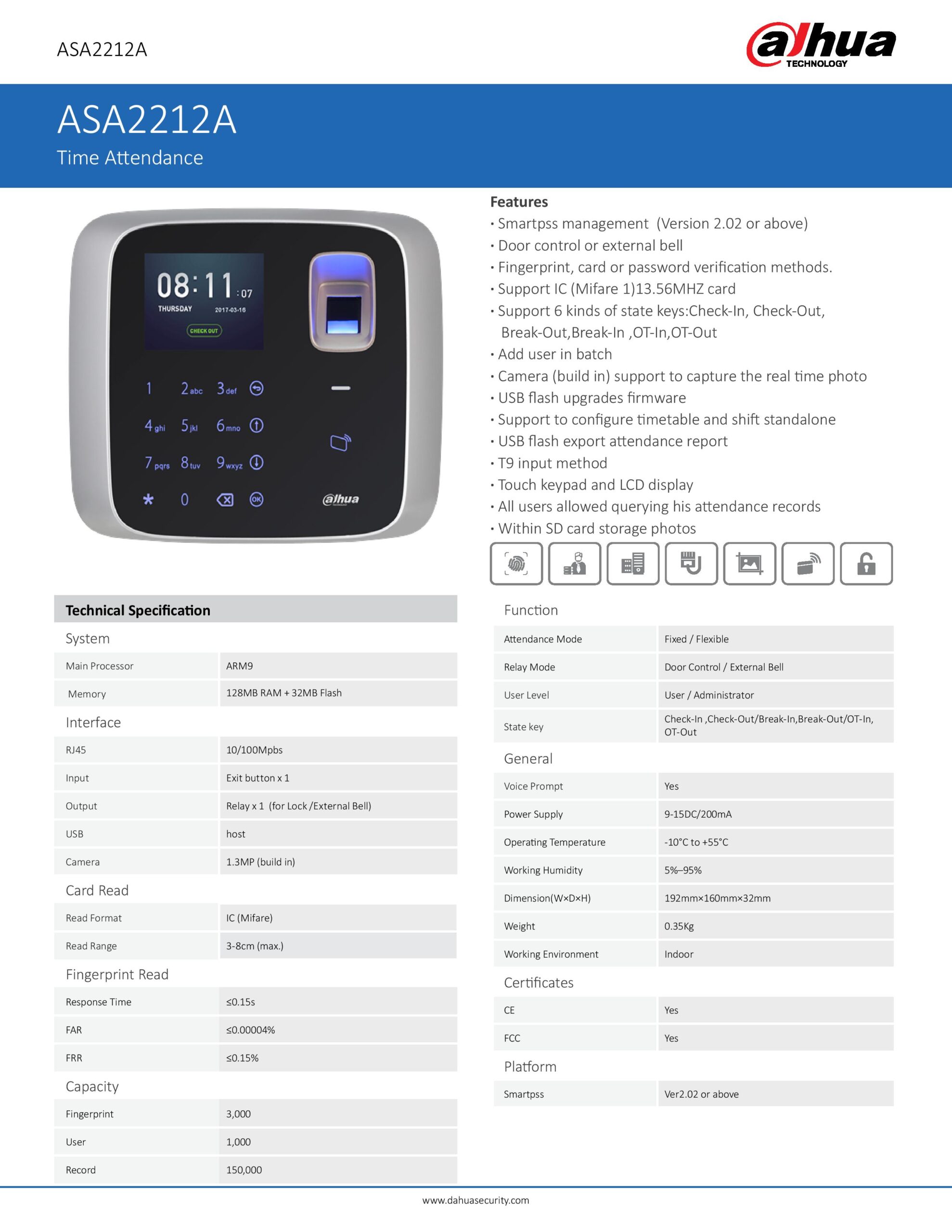

Product Datasheet Catalog


Product Warranty

1 Year


What’s in the Box?

1) Wooden Door Package

  1. DAHUA ASA2212A Fingerprint Mifare Card Standalone Time Attendance Door Access Control Terminal x 1
  2. EM Lock 600lbs w/ single colour LED x 1
  3. Door Exit Push Button (Big) x 1
  4. 12V 5A Switching Power Supply w/ Battery Charger in Metal Casing x 1
  5. GPower 12V 7Ah Backup Battery x 1
  6. Thin or Thick type EM Proximity Cards x 10

2)Swing Glass Door Package

  1. DAHUA ASA2212A Fingerprint Mifare Card Standalone Time Attendance Door Access Control Terminal x 1
  2. EM Lock 600lbs w/ single colour LED x 1
  3. Door Exit Push Button (Big) x 1
  4. 12V 5A Switching Power Supply w/ Battery Charger in Metal Casing x 1
  5. GPower 12V 7Ah Backup Battery x 1
  6. Thin or Thick type EM Proximity Cards x 10
  7. U1-600 – Glass Door Bracket x 2
  8. ZL-600 – Swing Glass Door Bracket x 1

Additional information

Weight 1 kg
Package

,
