Description
Product Highlights
- Ultra-Fast Processing: A 1.8 GHz 64-bit CPU handles all
- 4000 Mbps WiFi Speed: 1625 Mbps on both 5 GHz bands and 750 Mbps on 2.4 GHz band*

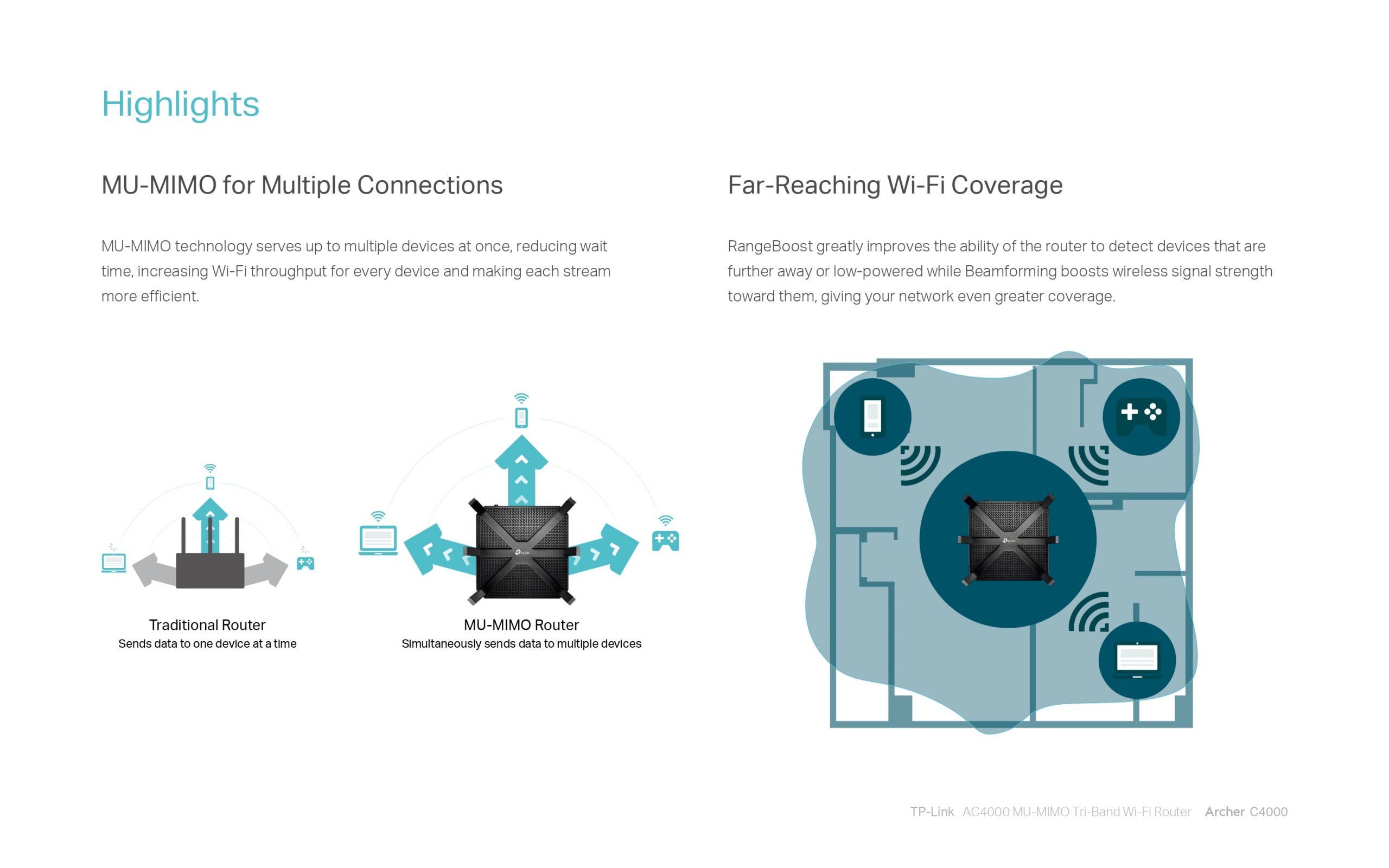

- No More Buffering: MU-MIMO and Tri-Band enable the router to connect more devices at the same time**

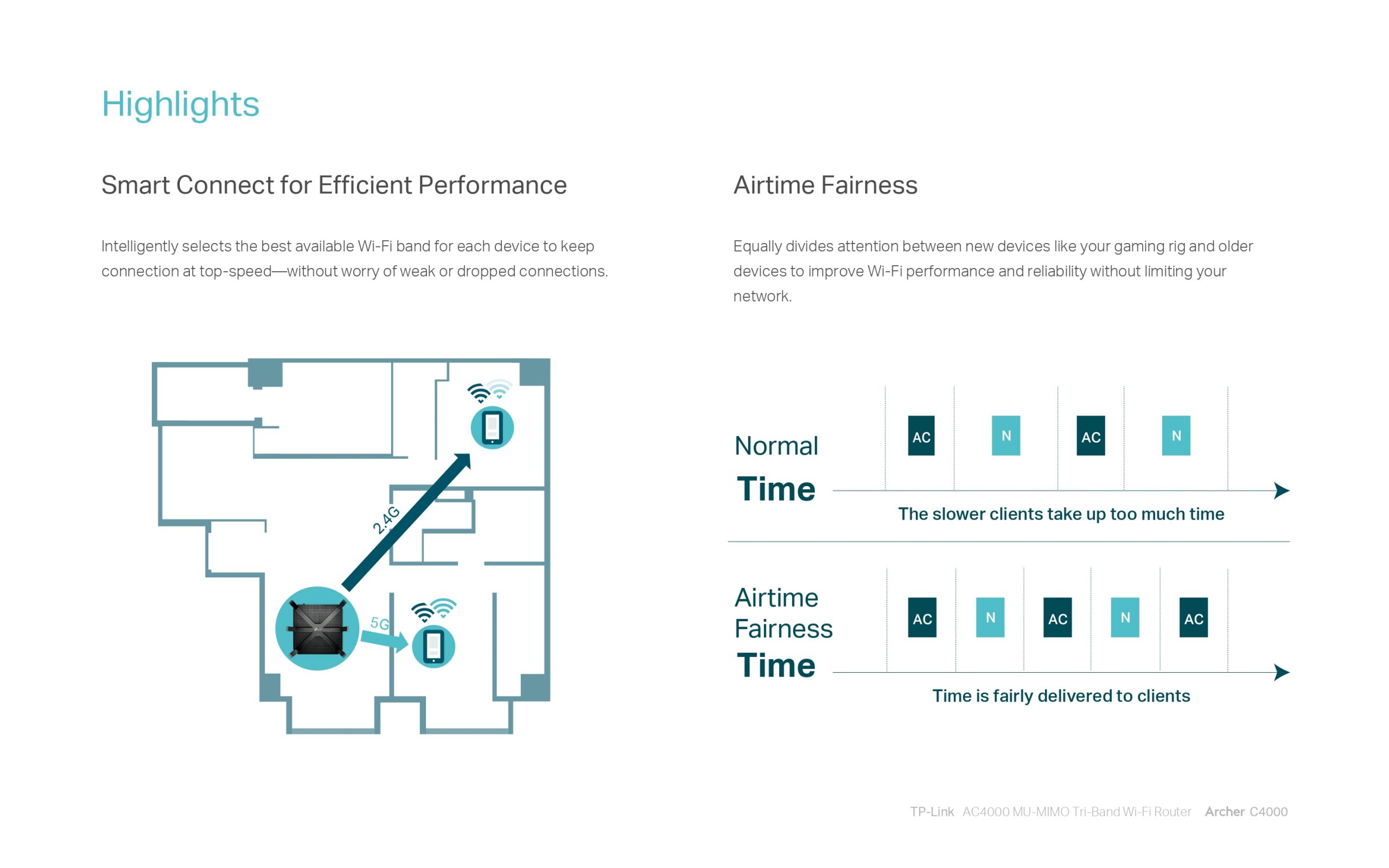

- Far-Reaching Range: RangeBoost technology boosts WiFi to farther coverage and Beamforming focuses signal to connected devices
- Secure Your Network: HomeCare protects your network from malicious attack and you can manage who and how to access the network***
- Easy Setup: With intuitive Phone UI or Tether app, your network is ready to go within a minute

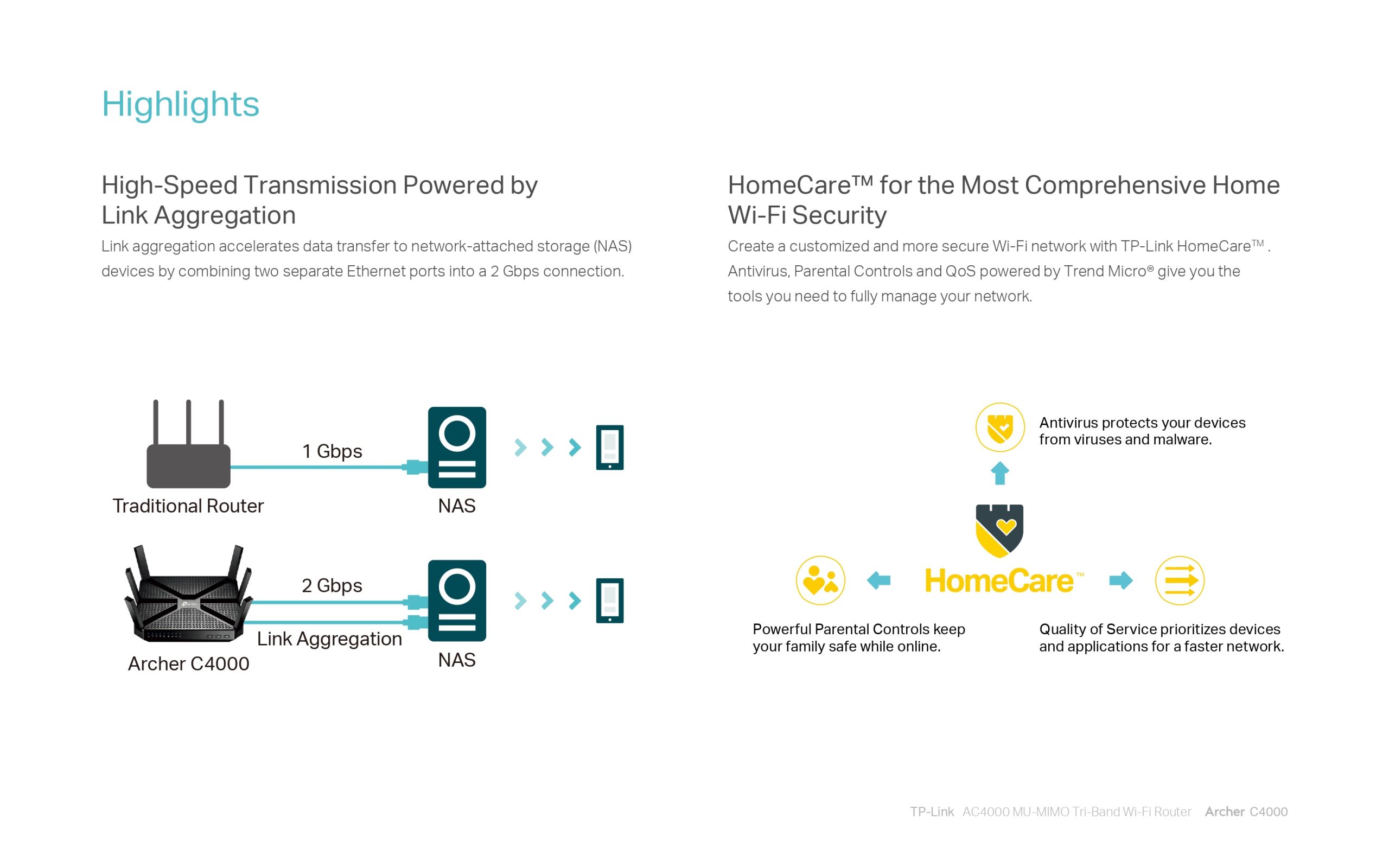

- Gigabit Wired Speeds: 1 WAN and 4 LAN gigabit ports bring wired speeds to the maximum and Link Aggregation even doubles it to 2 Gbps.
Product Catalogue
Product Specification
| HARDWARE FEATURES | |
|---|---|
| Processor | 1.8 GHz quad-core CPU and three co-processors |
| Memory | 512 MB |
| Standards and Protocols | 802.11a/b/g/n/ac, 802.3ab |
| Ports | 1x GE WAN 4x GE LAN 1x USB 2.0 1x USB 3.0 |
| Button | 1x Power 1x Wi-Fi On/Off 1x WPS 1x Reset 1x LED On/Off |
| LED Panel | 1x Power 1x 2.4 GHz 1x 5 GHz-1 1x 5 GHz-2 1x Ethernet 1x Internet 1x WPS 1x USB 2.0 1x USB 3.0 |
| Weight | 1.79 lb 0.81 kg |
| Dimensions ( W x D x H ) | 7.9 x 7.9 x 1.5 in |
| Dimensions | 200 x 200 x 39 mm |
| Antenna | 6 external antennas |
| Wi-Fi Chipset Features | MU-MIMO Beamforming Airtime Fairness RangeBoost NitroQAM |
| WIRELESS FEATURES | |
|---|---|
| Signal Rate | 750Mbps @ 2.4GHz 1625Mbps @ 5GHz 1625Mbps @ 5GHz |
| SOFTWARE FEATURES | |
|---|---|
| System Tools | Time Settings Diagnostics Fw OTA Upgrade Config backup/resotre Administration Syslog SNMP Statistics LED Control |
| Basic Function | Network Map (Internet Status / Client List / Speedtest) Internet Settings Wireless Settings USB Sharing Settings (USB Storage Sharing / FTP Server / Print Server / Media Server) HomeCare (Parental Control / Antivirus / QoS) Guest Network Settings TP-Link Cloud Settings Multiple Languages |
| Protocols | IPv4, IPv6 |
| Advanced Functions | Working Mode (Router Mode or AP Mode) Wireless Schedule Time Machine TP-Link DDNS Parental Controls/Antivirus/QoS IPv6 VPN Server (OpenVPN and PPTP Servers) NAT Forwarding (DMZ / UPnP) Link Aggregation (WAN / LAN) Airtime Fairness Smart Connect |
| Supported Operating Systems | OS Independent Up to Windows 10, Mac OS 10.12 and Linux |
| SECURITY | |
|---|---|
| Attack Defense | Malicious Content Filter Intrusion Prevention System Infected Device Quarantine |
| Access Control | Device-based whitelist / blacklist |
| Wi-Fi Security | Open WEP WPA-PSK WPA2-PSK |
| Firewall Features | Malicious Content Filter Intrusion Prevention System Infected Device Quarantine |
| OTHERS | |
|---|---|
| Smartphone/Tablet Requirements | Andriod 4.1 or higher iOS 8 or higher |
| Certifications | FCC CE CE DFS |
| Power Supply | 100-240V 50/60Hz |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Product Warranty
1 year
