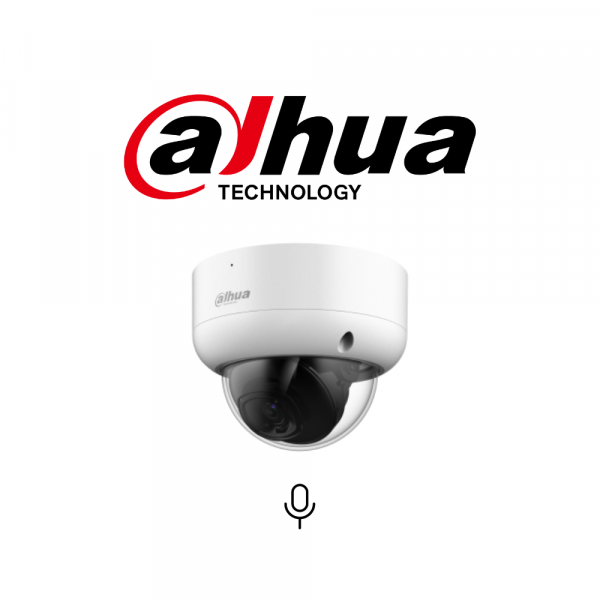

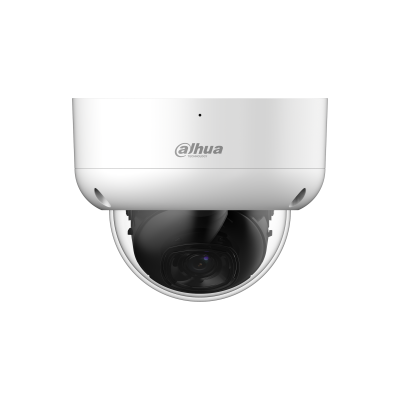

DAHUA HDBW1231EA-A 2MP Starlight HD-CVI IR Dome Camera

RM221.90

or 3 payments of RM73.97 with

Purchase this product and earn 222 Points

Unit Sold : 22

SKU: HDBW1231EA-A Categories: ,

Description

Product Highlights

  • Max 30 [email protected]
  • Starlight, 130 dB true WDR, 3D NR
  • 3.6 mm fixed lens (2.8 mm optional)
  • CVI/CVBS/AHD/TVI switchable
  • Super Adapt
  • Built-in mic
  • Max. IR length 40m, Smart IR
  • IP67, DC 12 V, IK10

Product Catalogue


Product Specification

Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 3 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–80°
Rotation: 0°–355°
Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: H:107°; V:56°;D:127°
3.6 mm: H:86°; V:46°;D:101°
Iris Type Fixed iris
Close Focus Distance 2.8 mm: 0.7 m (2.3 ft)
3.6 mm: 1.1 m (3.6 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 43.9 m (144 ft) 17.5 m (57.4 ft) 8.8 m

(28.9 ft)

4.4 m

(14.4 ft)

3.6 mm 53.7 m (176.2 ft) 21.5 m (70.5 ft) 10.7 m (35.1 ft) 5.4 m

(17.7 ft)

Video
Frame Rate CVI:
PAL: [email protected] fps;
NTSC: [email protected] fps;
AHD:
PAL: [email protected] fps;
NTSC: [email protected] fps;
TVI:
PAL: [email protected] fps;
NTSC: [email protected] fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H
Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/WDR/HLC
WDR 130 dB
White Balance Auto; Area WB
Gain Control Auto; manual
Noise Reduction 3D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power
Power Supply 12 V ±30% DC
Power Consumption Max 3.07 W (12 V DC, IR on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Protection Grade IP67, IK10
Structure
Casing Plastic dome cover+mental upper casing+mental pedestal
Camera Dimensions Φ112.0 mm × 89.1 mm (Φ4.41″ × 3.51″)
Net Weight 0.44 Kg (0.97 lb)
Gross Weight 0.63 Kg ( 1.39lb)

Product Warranty

2 years
