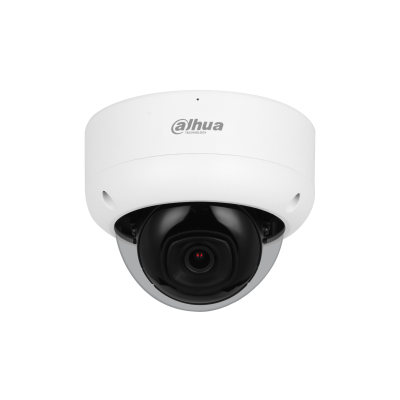

DAHUA HDBW3241E-AS 2MP IR Fixed focal Dome WizSense Network Camera

RM641.90

or 3 payments of RM213.97 with

Purchase this product and earn 642 Points

Unit Sold : 64

SKU: HDBW3241E-AS Categories: ,

Description

Product Highlights

  • 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 2MP (1920 × 1080)@30 fps
  • H.265 codec, high compression rate, low bit rate
  • Built-in IR LED, max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, and digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card
  • 12V DC/POE power supply
  • IP67, IK10 protection
  • SMD Plus

Product Catalogue


Product Specification

Camera
Image Sensor 1/2.8” 2Megapixel progressive CMOS
Max. Resolution 1920 (H) ×1080 (V)
ROM 128 MB
RAM 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.002 [email protected] (Color, 30IRE)

0.0002 [email protected] (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio > 56 dB
Illumination Distance 50 m (164.0 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 3 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°; Tilt: 0°–65°; Rotation: 0°–355°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.6
Field of View 2.8 mm: Horizontal:106°; vertical: 57°; diagonal: 126°
3.6 mm: Horizontal:87°; vertical: 46° ; diagonal: 104°
6 mm: Horizontal:54°; vertical: 29°; diagonal: 63°
Iris Type Fixed
Close Focus Distance 2.8 mm: 0.6 m (2.0 ft)
3.6 mm: 1.2 m (3.9 ft)
6 mm: 2.5 m (8.2 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 38.6 m

(126.6 ft)

15.4 m

(50.5 ft)

7.7 m

(25.3 ft)

3.9 m

(12.8 ft)

3.6mm 55.2 m

(181.1 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

5.5 m

(18.0 ft)

6mm 82.8 m

(271.7 ft)

33.1 m

(108.6 ft)

16.6 m

(54.5 ft)

8.3 m

(27.2 ft)

Professional, Intelligent
Perimeter Protection Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG(only supported

by sub stream)

Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream (1920 × [email protected]–25/30 fps)
sub stream (704 × [email protected]–25 fps/704 × [email protected]–30 fps)
third stream (1280 × [email protected]–25/30 fps)
Stream Capability 3 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Audio Compression G.711a; G.711Mu; G726
Alarm
Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;

Genetec

Scene Self-adaptation (SSA) Yes
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Browser IE: IE8, IE9, IE11

Chrome

Firefox

Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input 1-channel (RCA port)
Audio Output 1-channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption <6.9W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Conditions -40°C to +60°C (-40°F to +140°F)
Protection Grade IP67; IK10
Structure
Casing Metal
Dimensions 81 mm × Φ109.9 mm (3.2″ × Φ4.3″)
Net Weight 378 g (0.8 lb)
Gross Weight 523 g (1.2 lb)

Product Warranty

2 years
