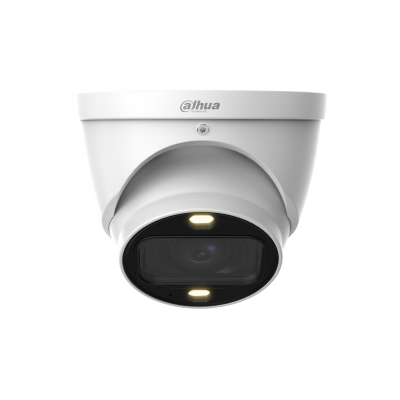

DAHUA HDW1239T-Z-A-LED 2MP Full-Colour HD-CVI Eyeball Motorised Camera

Purchase this product and earn 0 Points

Unit Sold :

SKU: HDW1239T-Z-A-LED Categories: ,


Product Highlights

  • 24/7 color imaging, Max. 30 fps@1080p
  • Super Adapt, 130 dB true WDR, 3D NR
  • Autofocus, 2.7 mm–13.5 mm motorized lens
  • 40 m illumination distance
  • Built-in mic
  • CVI/CVBS/AHD/TVI switchable
  • IP67, DC 12V

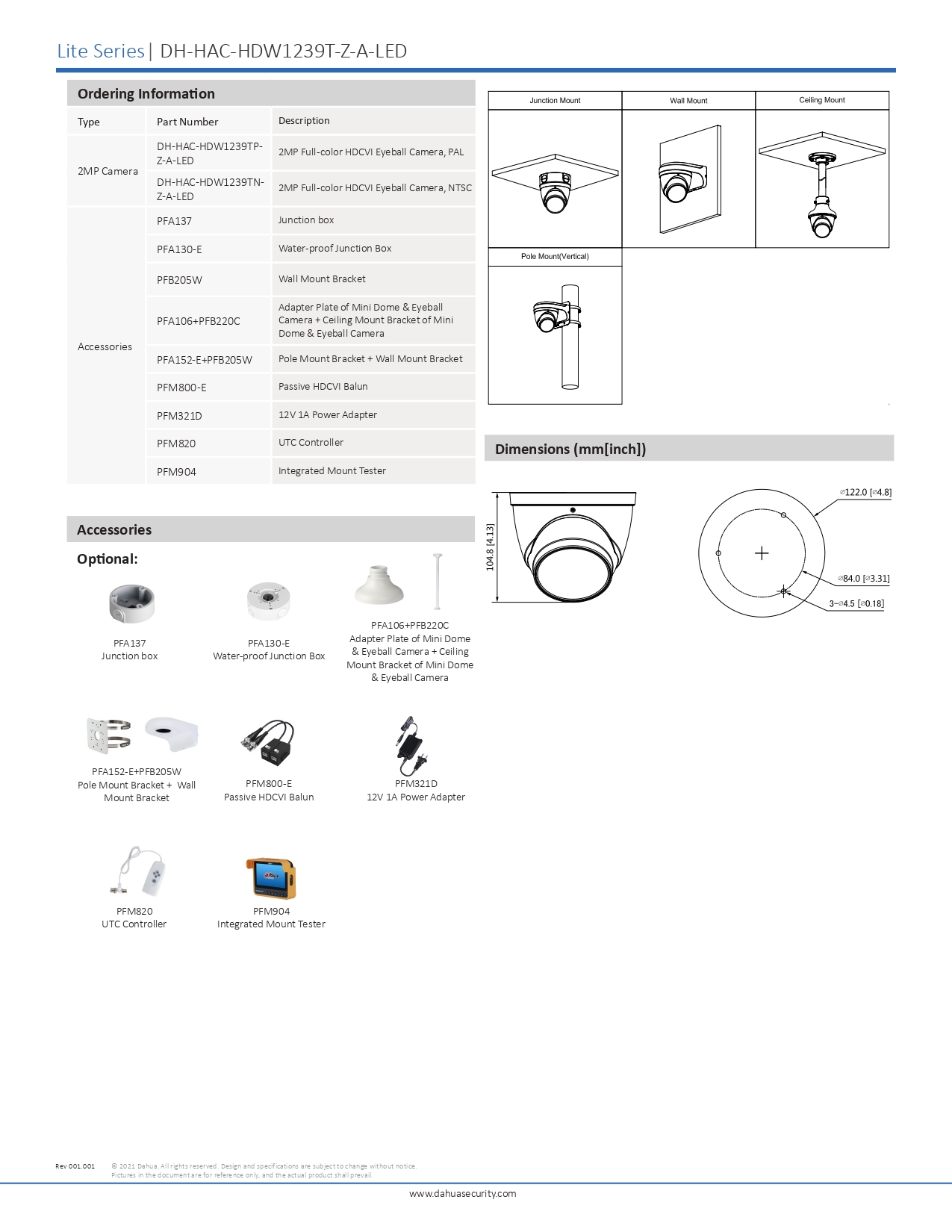

Product Catalogue

Product Specification

Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 (H) × 1080 (V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
S/N Ratio >65 dB
Min. Illumination 0.001 Lux/F1.2, 30IRE, 0 Lux LED on
Illumination Distance 40 m (131.2 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 2
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens Type Motorized vari-focal
Auto Focus Yes
Mount Type φ16
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.2
Field of View Diagonal: 39°–130°
Horizontal: 34°–107°
Vertical: 19°–56°
Iris Type Fixed iris
Close Focus Distance 1.5 m (4.9 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.7 mm 44.9 m (147.3 ft) 17.9 m (58.7 ft) 8.9 m

(29.2 ft)

4.5 m

(14.8 ft)

13.5 mm 128.6 m (421.9 ft) 51.4 m (168.6 ft) 25.7 m (84.3 ft) 12.8 m (42 ft)
Frame Rate CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
PAL: 960 × 576H;
NTSC: 960 × 480H;
Resolution 1080P (1920 × 1080); 960H (960 × 576/960 × 480);
WDR 130 dB
White Balance Auto;Area WB
Gain Control Auto; manual
Noise Reduction 3D NR
Smart Light Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power Supply DC 12V ±30%
Power Consumption Max 6.7W (12V DC, LED on)
Operating Temperature –30°C to +60°C (-22°F to 140°F);< 95% (non-condensation)
Storage Temperature –30°C to +60°C (-22°F to 140°F);95% (non-condensation)
Protection Grade IP67
Casing Metal throughout the whole casing
Camera Dimensions φ122 mm × 104.8 mm (φ4.8″ × 4.13″)
Net Weight 0.57 kg (1.26 lb)
Gross Weight 0.72 kg (1.59 lb)

Product Warranty

2 years
