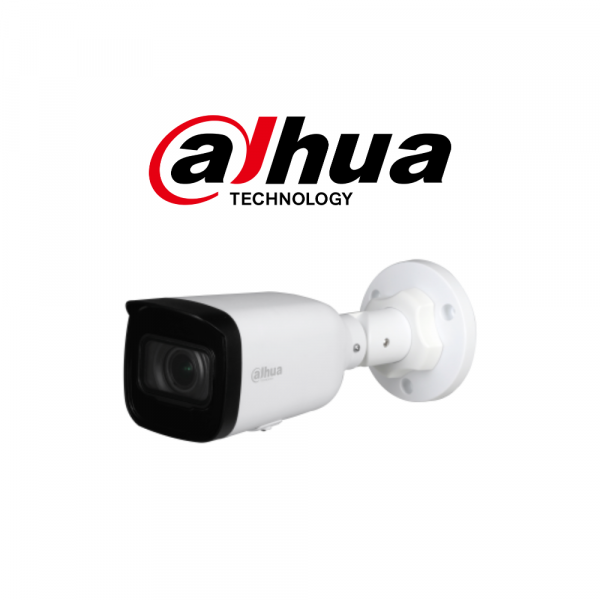

DAHUA HFW1230T1-ZS-S5 2MP Entry IR Varifocal Bullet Network Camera


Purchase this product and earn 567 Points

Unit Sold : 56

SKU: HFW1230T1-ZS-S5 Categories: ,


Product Highlights

  • 1/2.8″ CMOS Sensor, 30fps @ 2MP (1920 x 1080)
  • 0.008Lux
  • H.265+ Dual-Stream Encoding
  • IR LED up to 50m
  • Day&Night (ICR)
  • BLC
  • 3DNR, DWDR (True 120dB WDR for 1431 series)
  • Lens: 2.7 – 12mm Motorised Vari-focal
  • DC12V
  • PoE
  • IP67
  • Metal+Plastic housing

Product Catalogue

Product Specification

Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 (H) × 1080 (V)
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 [email protected] (Color, 30 IRE)

0.0005 [email protected] (B/W, 30 IRE)

0 Lux (Illuminator on)

S/N Ratio > 56 dB
Illumination Distance 50 m (164.04 ft) (IR)
Illuminator On/Off Control Auto; Manual
Illuminator Number 2 (IR)
Pan/Tilt/Rotation Range Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.8 mm–12 mm
Max. Aperture F1.5
Field of View Horizontal: 101°–33.5°; Vertical: 52.5°–19°;

Diagonal: 125°–38.5°

Iris Control Fixed
Close Focus Distance 1.2 m (3.94 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 48 m

(157.48 ft)

19 m

(62.34 ft)

10 m

( 32.81 ft)


(16.40 ft)

T 131 m

(429.79 ft)

52 m

(170.60 ft)

26 m

( 85.30 ft)


(42.65 ft)

Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream:1920 × [email protected]–25/30 fps

Sub stream: 704 × [email protected]–25 fps/704 × [email protected]–30 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps

H.265: 12 kbps–6144 kbps

Day/Night Auto(ICR)/Color/B/W
Scene Self-adaptation (SSA) NA
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception; defocus detection
Network Port RJ-45 (10/100 Base-T)
Wi-Fi NA
SDK and API Yes
Cyber Security Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Milestone
User/Host 6
Storage FTP; Micro SD card (Support max. 256 G)
Browser IE



Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android
Certifications CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Power Supply 12 V DC; PoE
Power Consumption Basic: 1.6W (12 V DC); 2.3W (PoE)

Max. (H.265 + ICR + IR intensity): 4.3 W (12V DC); 5.5 W (PoE)

Operating Temperature –30 °C to +60 °C (–22 °F to 140 °F)
Operating Humidity ≤95%
Protection IP67
Casing Metal + plastic
Product Dimensions 243.5 mm × Ø90.7 mm (9.59″ × Ø3.57″)
Net Weight 0.43 kg (0.95 lb)
Gross Weight 0.68 kg (1.50 lb)

Product Warranty

18 months
