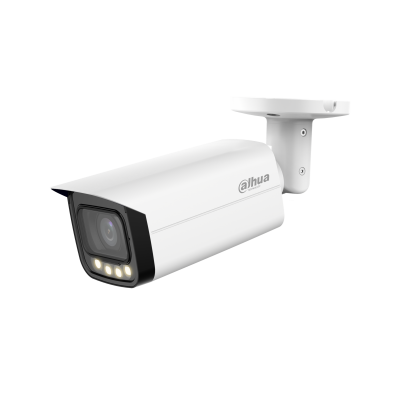

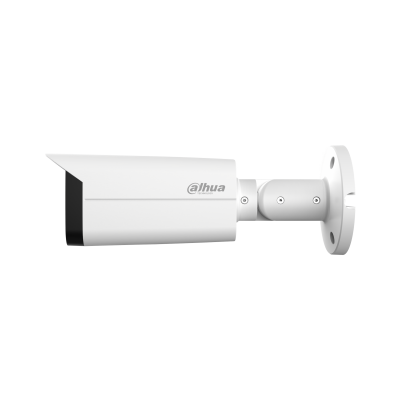

DAHUA HFW1239TU-Z-A-LED 2MP Full-Colour HD-CVI Bullet Motorised Camera

Description

Product Highlights

• 24/7 color imaging, Max. 30 [email protected]
• Super Adapt, 130 dB true WDR, 3D NR
• Autofocus, 2.7 mm–13.5 mm motorized lens
• 60 m illumination distance
• Built-in mic
• CVI/CVBS/AHD/TVI switchable
• IP67, DC 12V

---

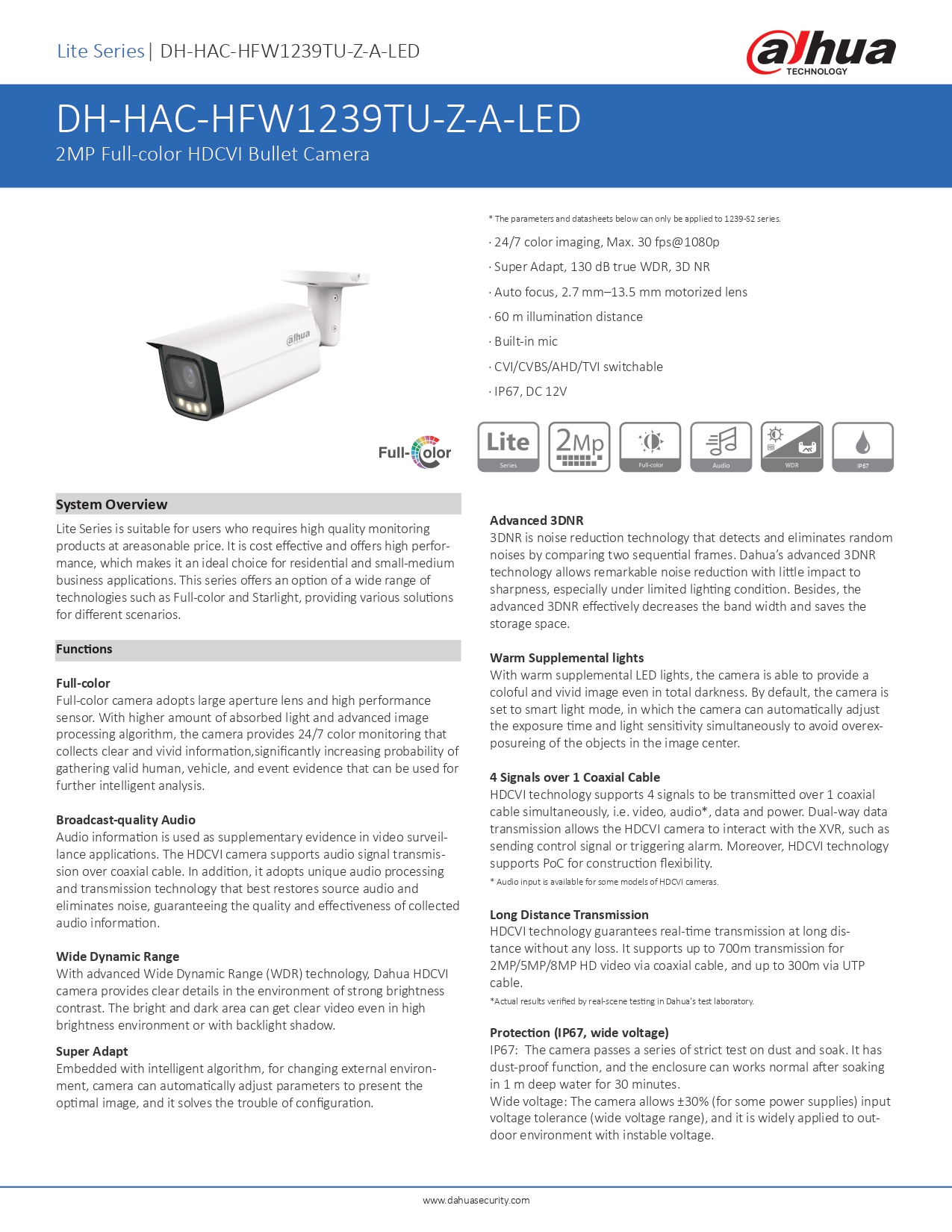

Product Catalogue

---

Product Specification

Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s

S/N Ratio

>65 dB

Min. Illumination

0.001 Lux/F1.2, 30IRE, 0 Lux LED on

Illumination Distance

60 m (196.9 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

4

Pan/Tilt/Rotation Range

Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Auto Focus

Yes

Mount Type

φ16

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.2

Field of View

Diagonal: 39°–130° Horizontal: 34°–107° Vertical: 19°–56°

Iris Type

Fixed iris

Close Focus Distance

1.5 m (4.9 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

44.9 m (147.3 ft)

17.9 m (58.7 ft)

8.9 m (29.2 ft)

4.5 m (14.8 ft)

13.5 mm

128.6 m (421.9 ft)

51.4 m (168.6 ft)

25.7 m (84.3 ft)

12.8 m (42 ft)

Video

Frame Rate

CVI: PAL: [email protected] fps; NTSC: [email protected] fps; AHD: PAL: [email protected] fps; NTSC: [email protected] fps; TVI: PAL: [email protected] fps; NTSC: [email protected] fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H;

Resolution

1080P (1920 × 1080); 960H (960 × 576/960 × 480);

BLC

BLC/WDR/HLC

WDR

130 dB

White Balance

Auto; Area WB

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

DC 12V ±30%

Power Consumption

Max 10.2W (12V DC, LED on)

Environment

Operating Temperature

–30°C to +60°C (-22°F to 140°F);< 95% (non-condensation)

Storage Temperature

–30°C to +60°C (-22°F to 140°F);< 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

244.1 mm × 90.4 mm × 90.4 mm (9.61″ × 3.56″ × 3.56″)

Net Weight

0.79 kg (1.7 lb)

Gross Weight

1.07 kg (2.4 lb)

---

Product Warranty

2 years
