DAHUA HFW2501TU-Z-A 5MP Starlight HD-CVI IR Bullet Camera

Purchase this product and earn 0 Points

Unit Sold :

SKU: HFW2501TU-Z-A Categories: ,

Description

DAHUA HFW2501TU-Z-A 5MP Starlight HDCVI IR Bullet Camera – Ultra Clarity with Nighttime Brilliance

Achieve superior video surveillance with the DAHUA HFW2501TU-Z-A, a high-performance 5MP bullet camera designed to deliver exceptional image quality and advanced low-light performance for round-the-clock security.

✅ 5MP High Resolution – Captures ultra-clear, detailed video for sharp, accurate monitoring
✅ Starlight Technology – Delivers outstanding low-light performance with vibrant color in near-darkness
✅ Motorized Varifocal Lens (2.7–13.5mm) – Enables remote zoom and focus adjustments for flexible field of view
✅ IR Night Vision – Smart IR LEDs provide clear black-and-white images up to 80 meters in complete darkness
✅ WDR (120dB Wide Dynamic Range) – Handles challenging lighting conditions for balanced exposure
✅ HDCVI Technology – Supports long-distance transmission over coaxial cable without signal loss
✅ Built-in Microphone – Captures high-quality audio to enhance video surveillance
✅ Weatherproof Design – Rugged IP67-rated housing for reliable outdoor performance in all weather
✅ OSD Menu via Coax – Easy access to camera settings through HDCVI DVR interface

Ideal for commercial, industrial, and residential security applications where image clarity and nighttime visibility are critical. The DAHUA HFW2501TU-Z-A offers cutting-edge features in a durable, professional-grade form factor.


Product Highlights

  • Max. 25 fps@5MP (16:9 video output)
  • Starlight, 120 dB true WDR, 3D NR
  • CVI/CVBS/AHD/TVI switchable
  • Built-in mic
  • 2.7 mm–13.5 mm motorized lens
  • Max. IR length 80 m, Smart IR
  • IP67, 12V DC±30%

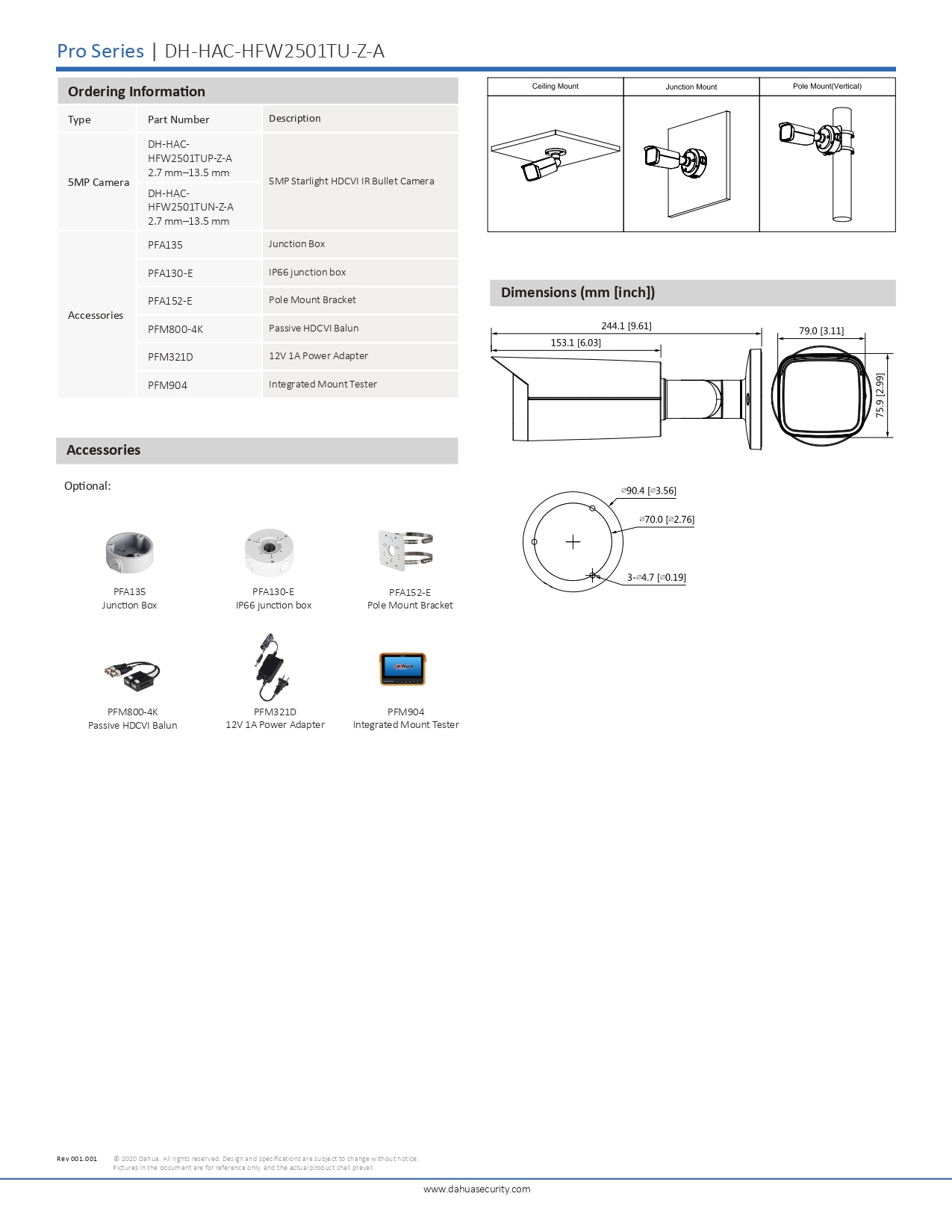

Product Catalogue


Product Specification

Camera
Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.6; 30IRE; 0 Lux IR on
Illumination Distance 80 m (262.5 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 4
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Auto Focus Yes
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.6
Field of View Horizontal: 31.4°–113°

Vertical: 17.6°–58°

Diagonal: 36°–138°

Iris Type Fixed iris
Close Focus Distance 0.8 m (2.6 ft)
DORI distance Lens Detect Observe Recognize Identify
2.7mm 64.0 m

(210.0 ft)

25.6 m

(84.0 ft)

12.8 m

(42.0 ft)

6.4 m

(21.0 ft)

13.5mm 210.0 m

(689.0 ft)

84.0 m

(275.6 ft)

42.0 m

(137.8 ft)

21.0 m

(68.9 ft)

Video
Frame Rate CVI:

PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps

NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps

AHD:

PAL: 4M@25 fps

NTSC: 4M@30 fps

TVI:

PAL: 4M@25 fps

NTSC: 4M@30 fps

CVBS:

PAL: 960H

NTSC: 960H

Resolution 5M (2880 × 1620); 4M (2560 × 1440);

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night Auto switch by ICR
BLC BLC/HLC/WDR/HLC-Pro
WDR 120 dB
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 3D NR
Smart Illumination Yes
Digital Zoom 4x
Defog Electronic defog
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certifications
Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN623681:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Audio Interface One channel built-in mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply 12V DC ±30%
Power Consumption Max. 10.7W (12V DC, IR on)
Environmental
Operating Temperature –30°C to +60°C (–22°F to +140°F); < 95%

(non-condensation)

Storage Temperature –30°C to +60°C (–22°F to +140°F); < 95%

(non-condensation)

Protection Grade IP67
Structure
Casing Metal throughout the whole casing
Camera Dimensions 244.1 mm × 90.4 mm × 90.4 mm

(9.61″ × 3.56″ × 3.56″)

Net Weight 0.76 kg (1.7 lb)
Gross Weight 1.07 kg (2.4 lb)

Product Warranty

2 years
