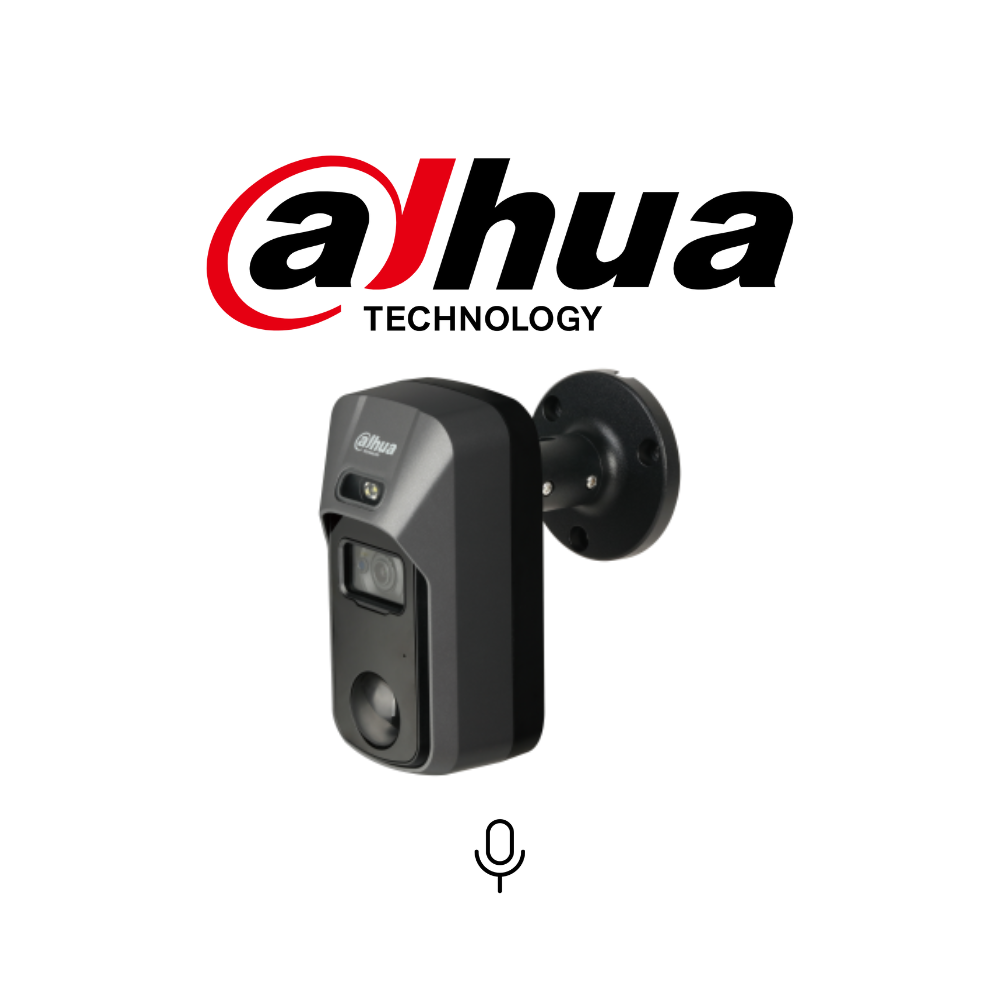

DAHUA ME2241C 2MP HDCVI Active Deterrence Camera

RM207.90

or 3 payments of RM69.30 with

Purchase this product and earn 208 Points

Unit Sold : 20

SKU: ME2241C Categories: ,

Description

Product Highlights

  • 1/2.8″ 2 MP Progressive Scan CMOS image sensor
  • Starlight 0.004Lux
  • HD and SD Switchable Output, 120dB WDR, 3DNR, [email protected], IR LED up to 20m
  • Built-in PIR for Dual Detection, White Light & Siren to warn off intruders
  • Lens: 3.6mm M12 Fixed
  • DC12V, IP67, Built-in Microphone, 1ch Alarm Out

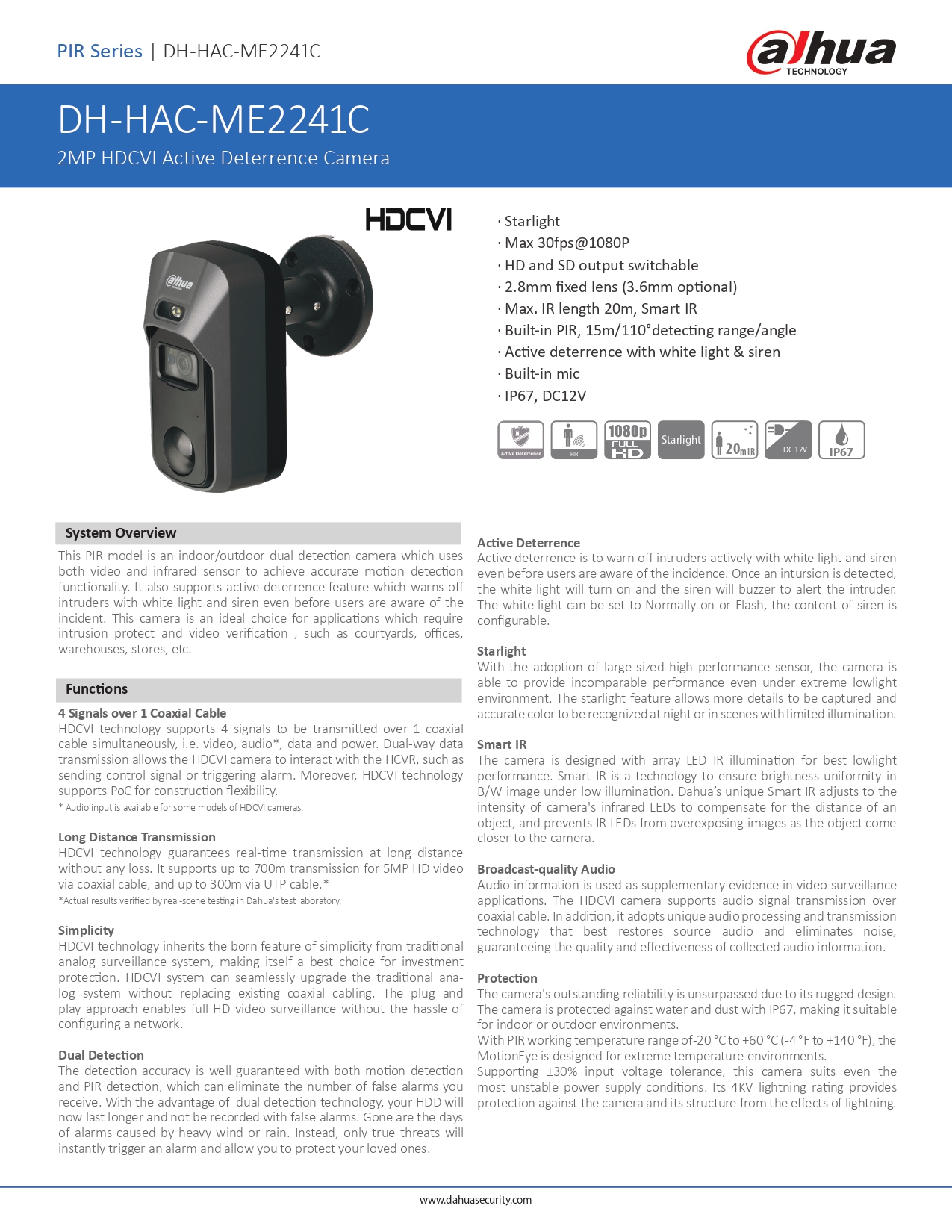

Product Catalogue

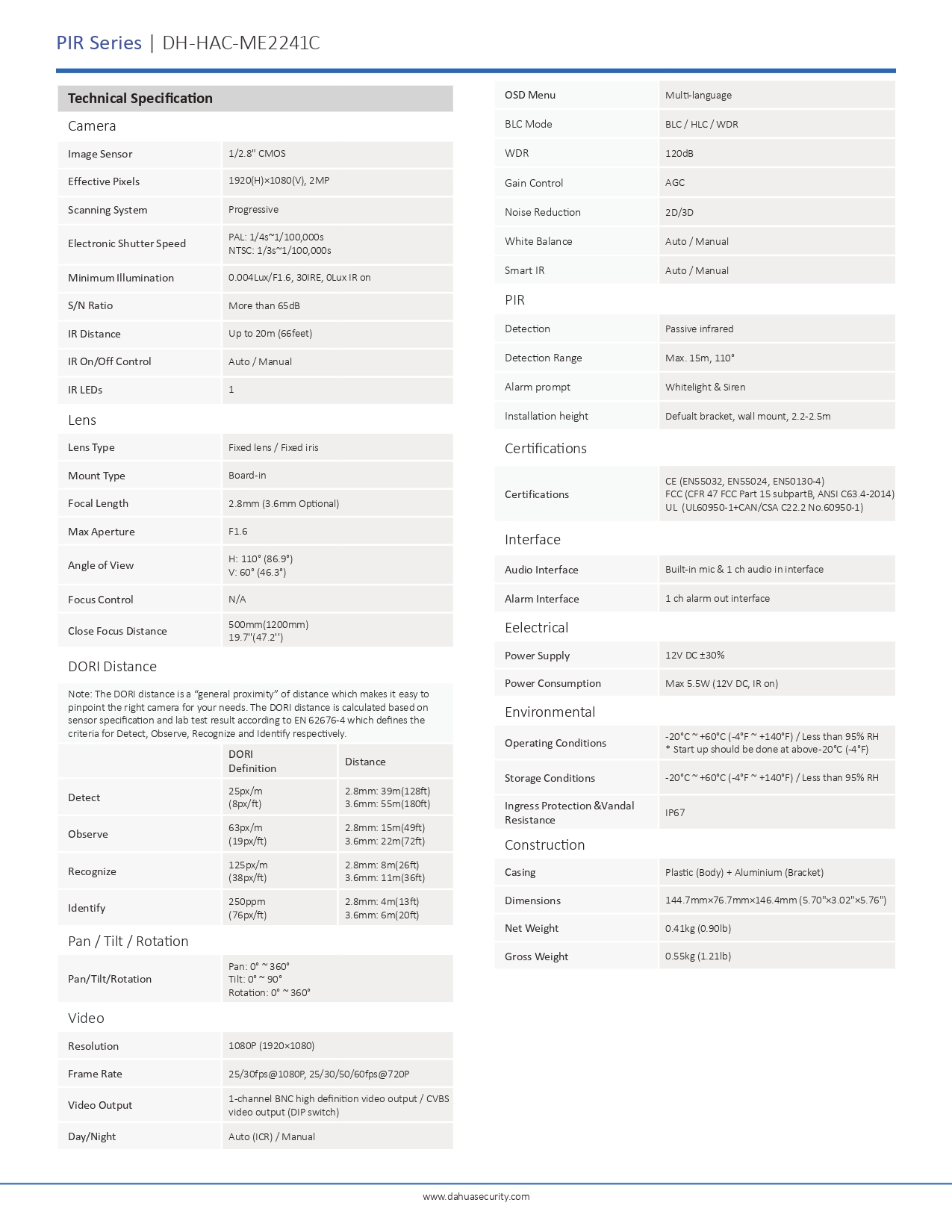

Product Specification

Camera
Image Sensor 1/2.8″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination 0.004Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 1
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.8mm (3.6mm Optional)
Max Aperture F1.6
Angle of View H: 110° (86.9°)

V: 60° (46.3°)

Focus Control N/A
Close Focus Distance 500mm(1200mm)

19.7”(47.2”)

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance
Detect 25px/m

(8px/ft)

2.8mm: 39m(128ft)

3.6mm: 55m(180ft)

Observe 63px/m

(19px/ft)

2.8mm: 15m(49ft)

3.6mm: 22m(72ft)

Recognize 125px/m

(38px/ft)

2.8mm: 8m(26ft)

3.6mm: 11m(36ft)

Identify 250ppm

(76px/ft)

2.8mm: 4m(13ft)

3.6mm: 6m(20ft)

Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution 1080P (1920×1080)
Frame Rate 25/[email protected], 25/30/50/[email protected]
Video Output 1-channel BNC high definition video output / CVBS

video output (DIP switch)

Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
PIR
Detection Passive infrared
Detection Range Max. 15m, 110°
Alarm prompt Whitelight & Siren
Installation height Defualt bracket, wall mount, 2.2-2.5m
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface Built-in mic & 1 ch audio in interface
Alarm Interface 1 ch alarm out interface
Electrical
Power Supply 12V DC ±30%
Power Consumption Max 5.5W (12V DC, IR on)
Environmental
Operating Conditions -20°C ~ +60°C (-4°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -20°C (-4°F)

Storage Conditions -20°C ~ +60°C (-4°F ~ +140°F) / Less than 95% RH
Ingress Protection &Vandal Resistance IP67
Construction
Casing Plastic (Body) + Aluminium (Bracket)
Dimensions 144.7mm×76.7mm×146.4mm (5.70″×3.02″×5.76″)
Net Weight 0.41kg (0.90lb)
Gross Weight 0.55kg (1.21lb)

Product Warranty

2 years
