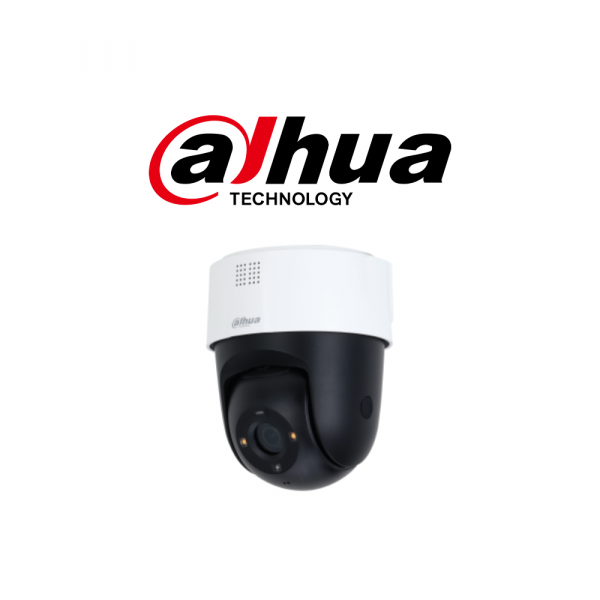

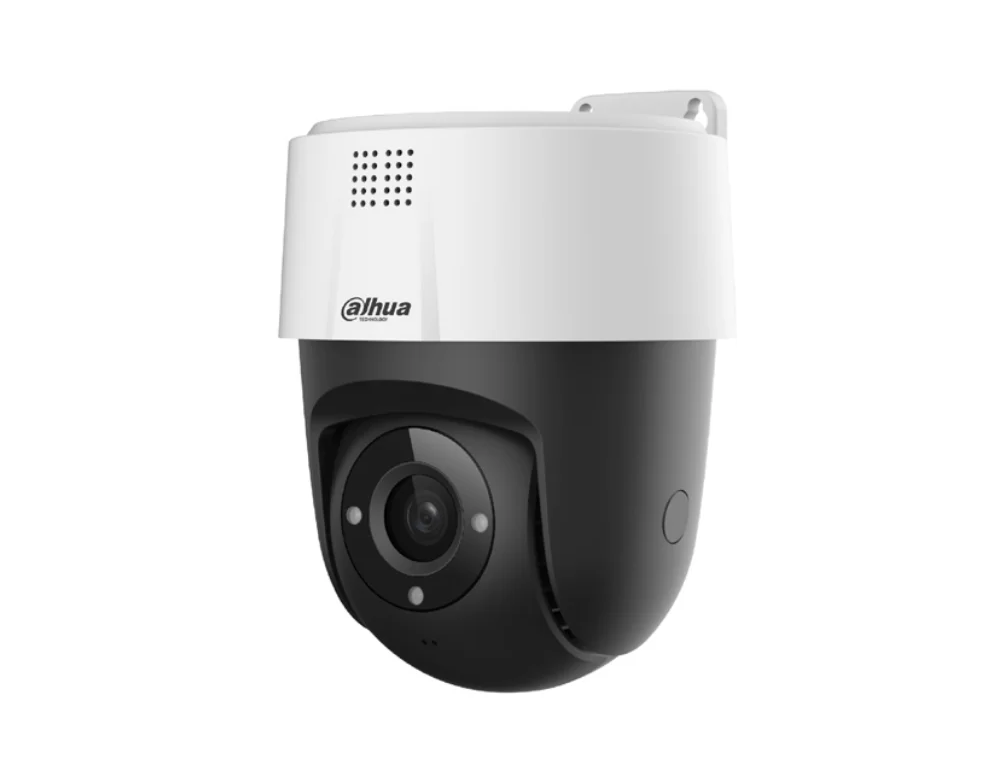

DAHUA SD2A500-GN-A-PV 5MP IR & White Light Active Deterrence Full Colour Network PT Camera

Purchase this product and earn 0 Points

Unit Sold :

SKU: SD2A500-GN-A-PV Categories: ,

Description

Product Highlights

  • 1/2.8″ 5MP STARVIS CMOS; 20fps @ 5MP
  • H.265 Dual Stream; Starlight 0.005Lux
  • Micro SD up to 512GB, Audio 1/1, Built-in Microphone, Built-in Speaker (two-way talk)
  • Lens: 4mm Fixed; DWDR, 3DNR; IR LED / Illumination up to 30m
  • DC12V 1.5A / PoE, IP66, TVS 2000V Lightning proof, Active Deterrence, Human Detection

Product Catalogue

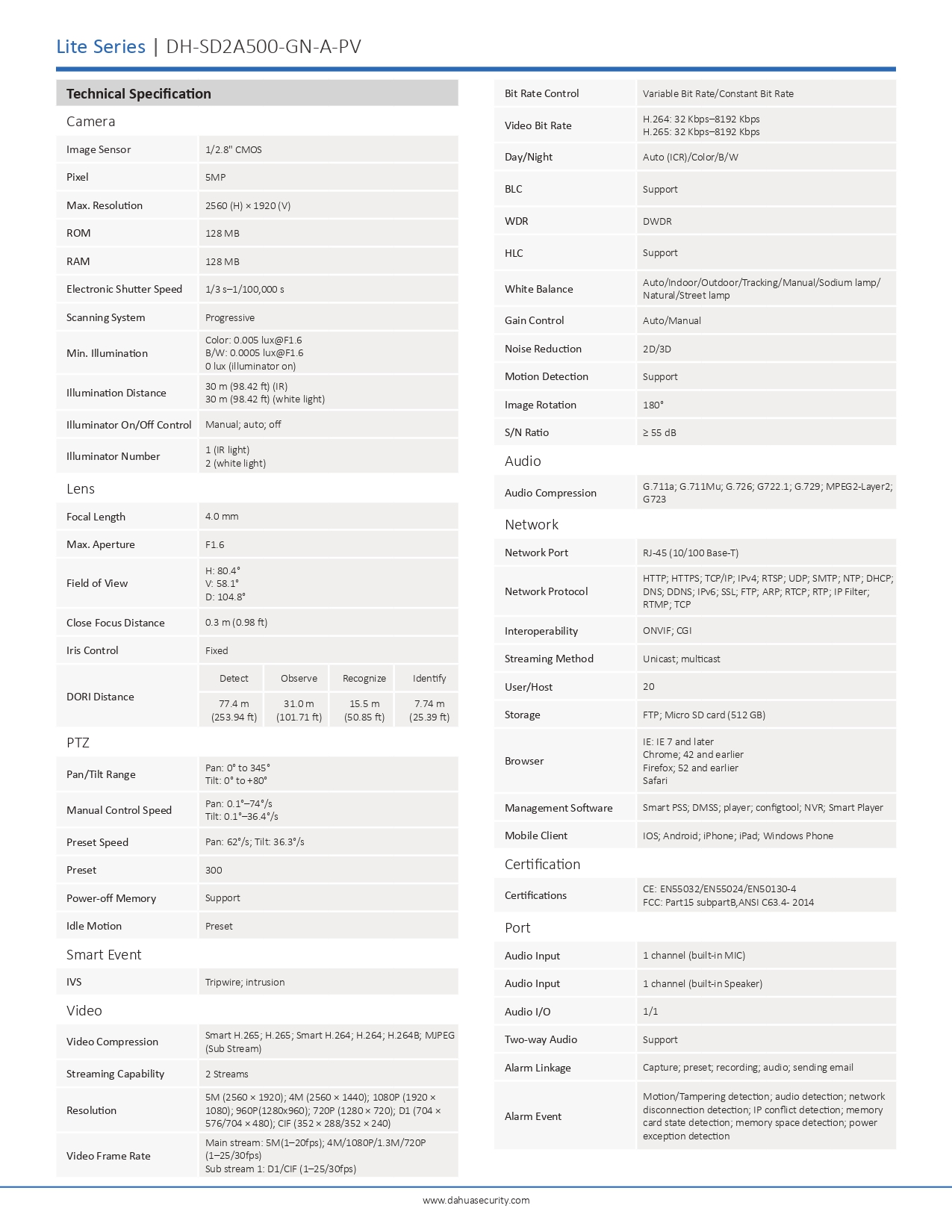

Product Specification

Camera
Image Sensor 1/2.8″ CMOS
Pixel 5MP
Max. Resolution 2560 (H) × 1920 (V)
ROM 128 MB
RAM 128 MB
Electronic Shutter Speed 1/3 s–1/100,000 s
Scanning System Progressive
Min. Illumination Color: 0.005 [email protected]
B/W: 0.0005 [email protected]
0 lux (illuminator on)
Illumination Distance 30 m (98.42 ft) (IR)
30 m (98.42 ft) (white light)
Illuminator On/Off Control Manual; auto; off
Illuminator Number 1 (IR light)
2 (white light)
Lens
Focal Length 4.0 mm
Max. Aperture F1.6
Field of View H: 80.4°
V: 58.1°
D: 104.8°
Close Focus Distance 0.3 m (0.98 ft)
Iris Control Fixed
DORI Distance Detect Observe Recognize Identify
77.4 m (253.94 ft) 31.0 m (101.71 ft) 15.5 m (50.85 ft) 7.74 m (25.39 ft)
PTZ
Pan/Tilt Range Pan: 0° to 345°
Tilt: 0° to +80°
Manual Control Speed Pan: 0.1°–74°/s
Tilt: 0.1°–36.4°/s
Preset Speed Pan: 62°/s; Tilt: 36.3°/s
Preset 300
Power-off Memory Support
Idle Motion Preset
Smart Event
IVS Tripwire; intrusion
Video
Video Compression Smart H.265; H.265; Smart H.264; H.264; H.264B; MJPEG (Sub Stream)
Streaming Capability 2 Streams
Resolution 5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280×960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate Main stream: 5M(1–20fps); 4M/1080P/1.3M/720P (1–25/30fps)
Sub stream 1: D1/CIF (1–25/30fps)
Bit Rate Control Variable Bit Rate/Constant Bit Rate
Video Bit Rate H.264: 32 Kbps–8192 Kbps
H.265: 32 Kbps–8192 Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Support
WDR DWDR
HLC Support
White Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp
Gain Control Auto/Manual
Noise Reduction 2D/3D
Motion Detection Support
Image Rotation 180°
S/N Ratio ≥ 55 dB
Audio
Audio Compression G.711a; G.711Mu; G.726; G722.1; G.729; MPEG2-Layer2; G723
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP Filter; RTMP; TCP
Interoperability ONVIF; CGI
Streaming Method Unicast; multicast
User/Host 20
Storage FTP; Micro SD card (512 GB)
Browser IE: IE 7 and later
Chrome; 42 and earlier
Firefox; 52 and earlier
Safari
Management Software Smart PSS; DMSS; player; configtool; NVR; Smart Player
Mobile Client IOS; Android; iPhone; iPad; Windows Phone
Certification
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
Port
Audio Input 1 channel (built-in MIC)
Audio Input 1 channel (built-in Speaker)
Audio I/O 1/1
Two-way Audio Support
Alarm Linkage Capture; preset; recording; audio; sending email
Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply 12 VDC/1.5 A ± 10%
PoE (802.3af)
Power Consumption Basic: 4 W
Max.: 12.95 W (illuminator)
Environment
Operating Temperature –30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity ≤ 95% RH
Protection IP66, TVS 2000 V lightning proof; surge protection; voltage transient protection
Construction
Product Dimensions 146.5 mm × Φ118.0 mm (5.77″ × Φ4.65″)
Net Weight 0.5 kg (1.10 lb)
Gross Weight 1 kg (2.20 lb)
Accessory Included:
Wall/Ceiling mount bracket: Yes

Product Warranty

2 years
