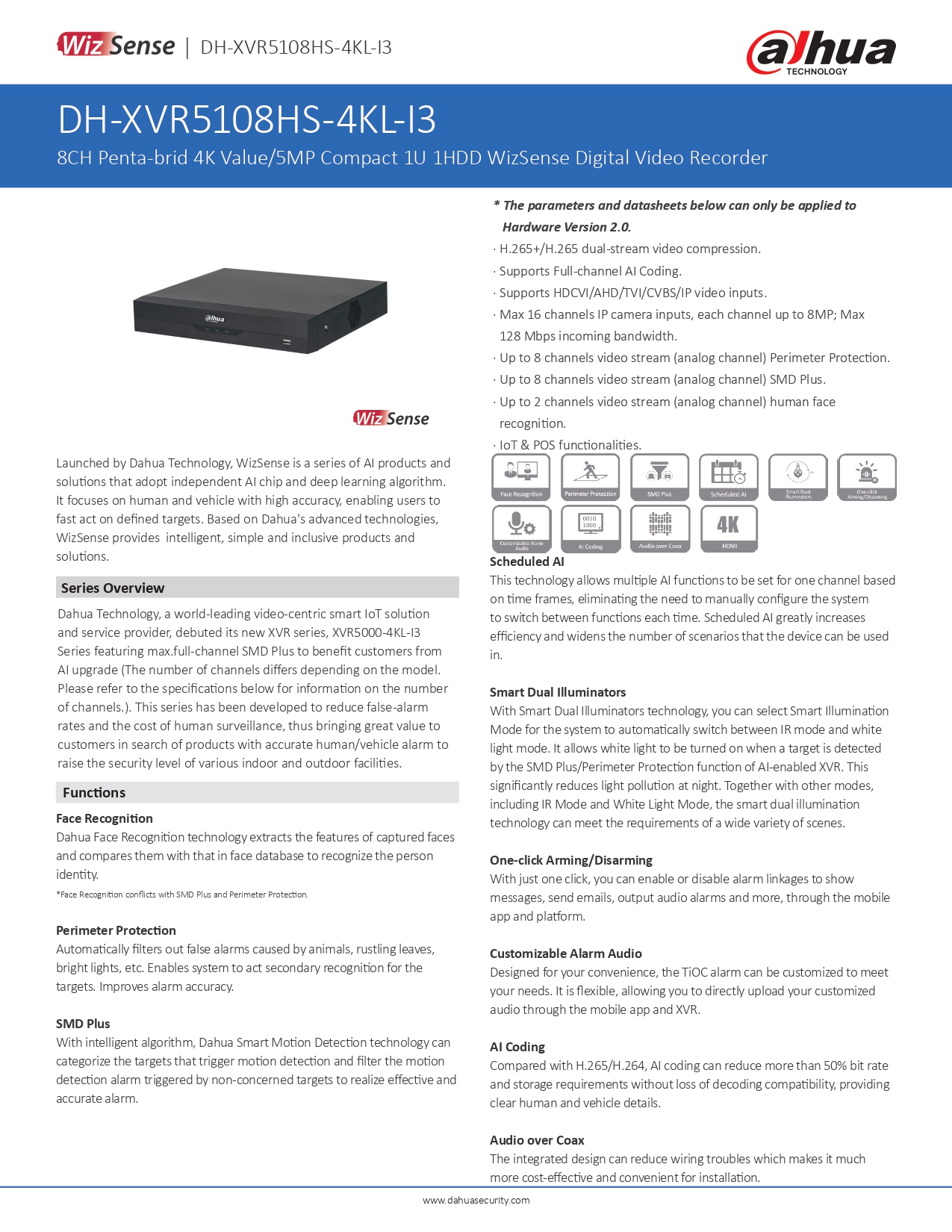

DAHUA XVR5108HS-4KL-I3 8 Channel Penta-brid 4K-N/5MP Compact 1U 1HDD WizSense Digital Video Recorder

RM1,037.90

or 3 payments of RM345.97 with

Purchase this product and earn 1038 Points

Unit Sold : 10

SKU: XVR5108HS-4KL-I3 Categories: ,

Description

Product Highlights

  • H.265+/H.265 dual-stream video compression
  • Supports Full-channel AI Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 16 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
  • Up to 8 channels video stream (analog channel) Perimeter Protection
  • Up to 8 channels video stream (analog channel) SMD Plus
  • Up to 2 channels video stream (analog channel) human face recognition
  • IoT & POS functionalities

Product Catalogue

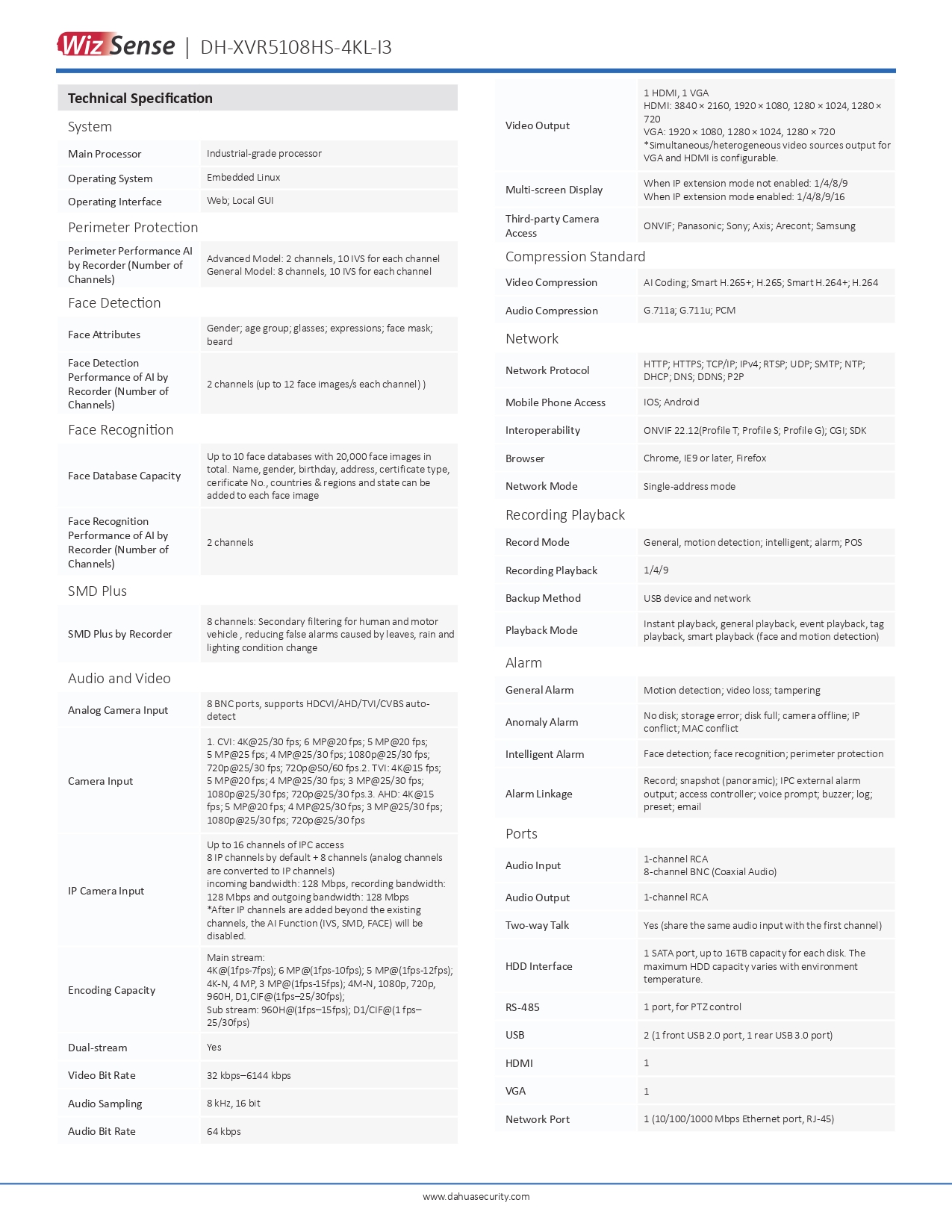

Product Specification

System
Main Processor Embedded processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model: 2 channel, 10 IVS for each channel

General Model: 8 channels, 10 IVS for each channel

Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s)
Face Recognition
Face Database Capacity Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels
SMD Plus
SMD Plus by Recorder 8 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input 8 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect.
Camera Input 1. CVI: 4K, 6MP, 5MP, 4MP, [email protected]/30 fps, [email protected]/60 fps, [email protected]/30 fps.
2. TVI: 4K, 5MP, 4MP, 3MP, [email protected]/30, [email protected]/30 fps.
3. AHD: 4K, 5MP, 4MP, 3MP, [email protected]/30, [email protected]/30 fps.
IP Camera Input Up to 16 channels of IPC access

8 IP channels by default + 8 channels (analog channels are converted to IP channels)

incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps

*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity Main stream: All channel [email protected](1-7 fps); [email protected] (1-10 fps); [email protected] (1-12 fps); 4K-N/4 MP/3 [email protected] (1-15 fps); 4M-N/1080P/720P/960H/D1/CIF (1fps–25/30fps);

Sub stream: [email protected] (1 fps–15 fps); D1/[email protected] (1 fps–25/30 fps)

Dual-stream Yes
Video Frame Rate PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.
Video Bit Rate 32 Kbps–6144 Kbps Per Channel
Audio Sampling 8 KHz, 16 bit
Audio Bit Rate 64 Kbps
Video Output 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Multi-screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
Compression Standard
Video Compression AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression G.711A/G.711u/PCM
Network
Network Protocol HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile Phone Access iPhone, iPad, Android
Interoperability ONVIF 21.06, CGI
Browser Chrome, IE9 or above, Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4/9
Backup Method USB Device/Network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm Motion detection, Video Loss, tampering, and local alarm
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input 1, RCA (external)
8, BNC (coaxial)
Audio Output 1, RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA Port, up to 16TB, the maximum HDD capacity varies with environment temperature
RS-485 1 Port, for PTZ Control
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply DC12V, 2A
Power Consumption Lower than 10 W
Net Weight 0.9 kg ( 1.98 lb)
Gross Weight 1.5 kg ( 3.31 lb)
Product Dimensions Compact 1U, 260.0 mm × 237.9 mm × 47.6 mm

10.24″ × 9.37″ × 1.87″ (W × D × H)

Packaging Dimensions 333.0 mm × 89.0 mm × 315.0 mm
13.11″ × 3.50″ × 12.40″ (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90%
Installation Desktop
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B

Product Warranty

2 years
