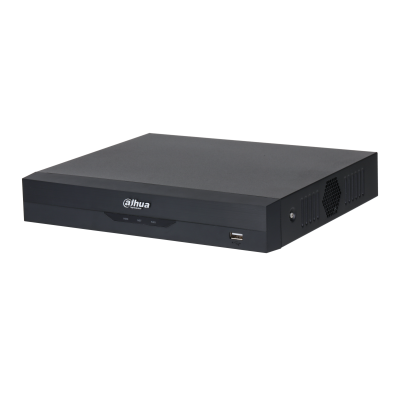

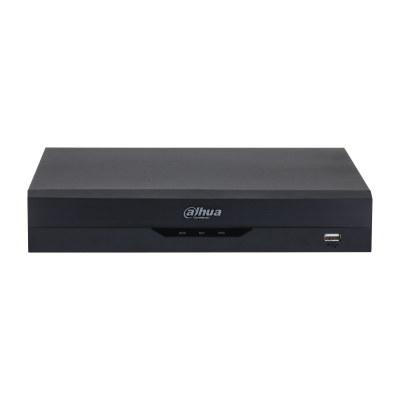

DAHUA XVR5108HS-I3 8-CH 1080P Compact 1U WizSense Pentabrid DVR

RM617.90

or 3 payments of RM205.97 with

Purchase this product and earn 618 Points

Unit Sold : 61

SKU: XVR5108HS-I3 Categories: ,

Description

Product Highlights

  • 8 channel BNC + 4 IPC up to 6MP (Max 64Mbps)
  • All channel Recording 5M-N @ 10fps ; 4M-N/1080P @ 15fps
  • AI Features: Face Recognition, Perimeter Protection & SMD Plus
  • HDMI + VGA display output; RS485, 2 x USB
  • Supports 1 x HDD up to 10TB, Audio 1/1, 12V 2A

Product Catalogue


Product Specification

System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model : 1 channel, 10 IVS for each channel
General Model : 2 channels, 10 IVS for each channel
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 1 channel, (up to 8 face images/s)
Face Recognition
Face Database Capacity Up to 10 face databases and 10,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels) 1 channel
SMD Plus
SMD Plus by Recorder 8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input 8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input 1. CVI: 5 MP, 4 MP, [email protected]/30 fps, [email protected]/60 fps, [email protected]/30 fps.
2. TVI: 5 MP, 4 MP, [email protected]/30 fps, [email protected]/30 fps.
3. AHD: 5 MP, 4 MP, [email protected]/30 fps, [email protected]/30 fps.
4. CVBS: PAL/NTSC
IP Camera Input Up to 12 channels of IPC access

4 IP channels by default + 8 channels (analog channels are converted to IP channels)

incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity Main stream: All channel 5M-N (1 fps–10 fps);

4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/

D1/CIF (1 fps–25/30 fps)

Sub stream: D1/CIF (1 fps–15 fps)

Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA

HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access iOS; Android
Interoperability ONVIF 21.06; CGI Conformant
Browser Chrome
IE9 or later
Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm Motion detection, video loss, tampering
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

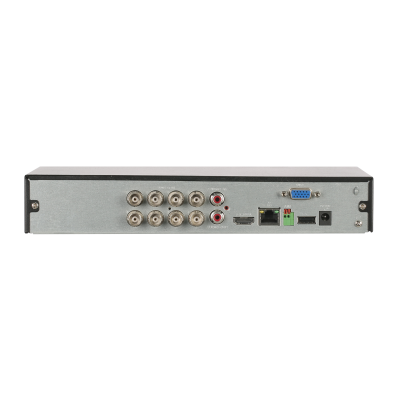

Ports
Audio Input 1-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-485 1 port, for PTZ control
USB 2 USB ports (USB 2.0)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 2 A
Power Consumption <7 W
Net Weight 1.1 kg (2.43 lb)
Gross Weight 1.5 kg (3.31 lb)
Product Dimensions 260.0 mm × 237.9 mm × 47.6 mm (10.24” × 9.37” × 1.87”) (W × D × H)
Packaging Dimensions 333.0mm × 315.0mm × 89.0 mm (13.11″ × 12.40″ × 3.50″) (W× D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 0%–90% (RH)
Installation Desktop
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

Product Warranty

2 years
