GLOBAL SECURITY GS-DVR-8013-5ML 8 Channels H.265+ 1HDD 5MP – Lite Recorder


Purchase this product and earn 615 Points

Unit Sold : 61

SKU: GS-DVR-8013-5ML Categories: ,


Product Highlights

  • H.265+ Compression – saving 50% HDD space
  • Stable & Economical Linux base
  • 8ch Individual channel auto detect:
    • Analog (960H) @Real-time 25fps
    • AHD/TVI 720p @25fps
    • AHD/TVI 1080p @25fps
    • AHD/TVI 5MP @20fps
  • Support 4ch IP Camera
  • Analog CH can be converted to IP CH
  • Max. Ch (Analog + IP) = 12
  • Full HD 1080p HDMI & VGA output
  • CVBs Output
  • UTC Camera OSD Control
  • 1 Audio in /  1 Audio out
  • RS485 PTZ Control
  • Support 1 x HDD (Max. 8TB)
  • 8ch Simultaneous Playback

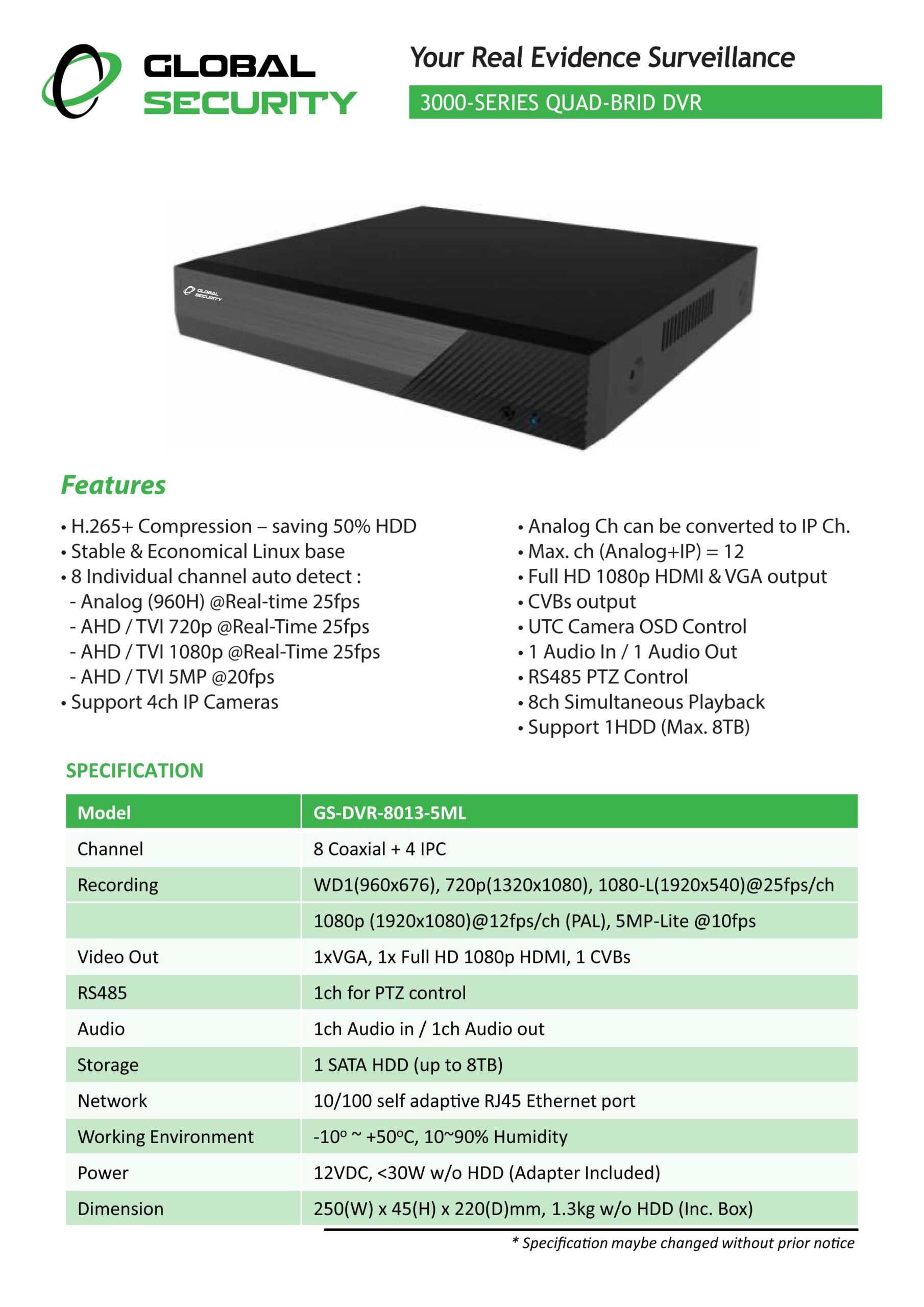

Product Catalog

Product Specifications

Model GS-DVR-8013-5ML
Channel 8 Coaxial + 4 IPC
Recording WD1(960×676), 720p(1320×1080), 1080-L(1920×540)@25fps/ch
1080p (1920×1080)@12fps/ch (PAL), 5MP-Lite @10fps
Video Out 1xVGA, 1x Full HD 1080p HDMI, 1 CVBs
RS485 1ch for PTZ control
Audio 1ch Audio in / 1ch Audio out
Storage 1 SATA HDD (up to 8TB)
Network 10/100 self adaptive RJ45 Ethernet port
Working Environment -10o ~ +50oC, 10~90% Humidity
Power 12VDC, <30W w/o HDD (Adapter Included)
Dimension 250(W) x 45(H) x 220(D)mm, 1.3kg w/o HDD (Inc. Box)

Product Warranty

2 Years

What’s in the Box?

  1. User Manual
  2. 5MP Recorder
  3. Wired USB Mouse
