Description

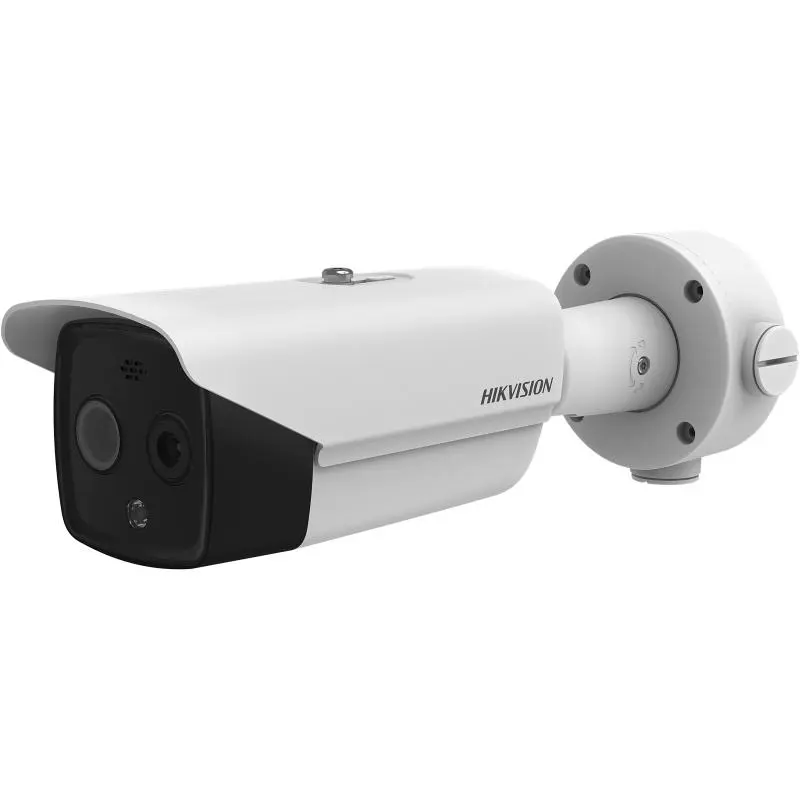

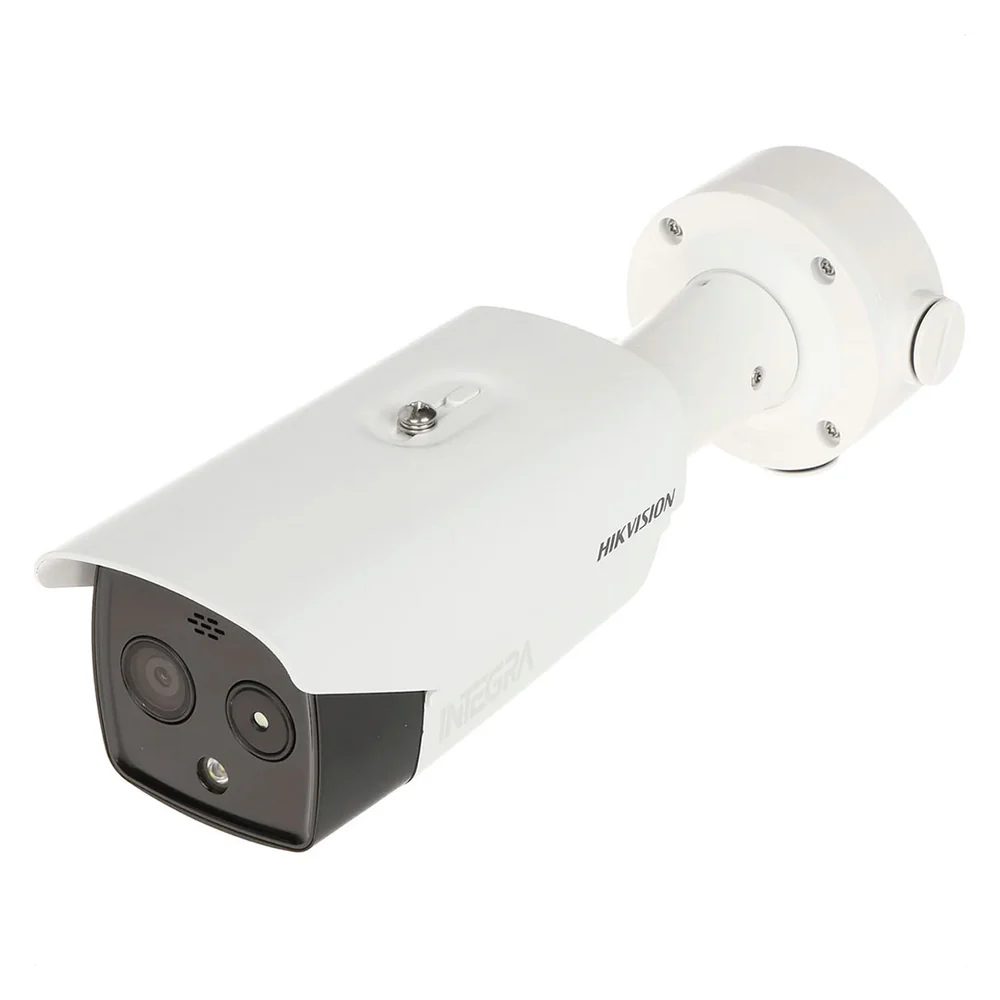

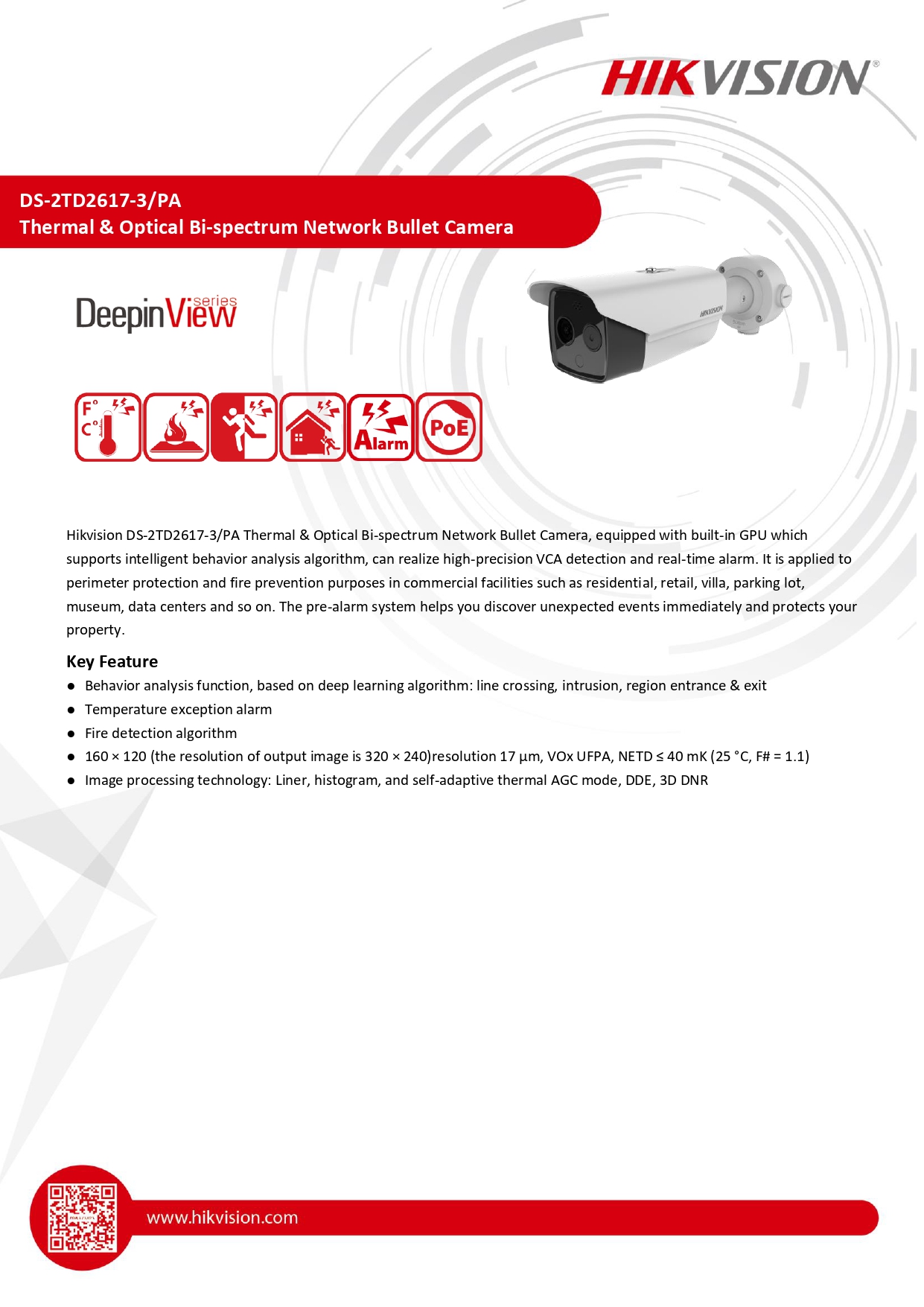

HIKVISION DS-2TD2617-3/PA – Thermal & Optical Bi-spectrum Network Bullet Camera
The DS-2TD2617-3/PA is an advanced thermal & optical bi-spectrum bullet camera, combining thermal imaging with visible light video for round-the-clock monitoring, temperature anomaly detection, and early fire prevention—ideal for perimeter defense and critical infrastructure protection.
✅ Bi-Spectrum Image Fusion – Combines thermal and optical views for richer surveillance imagery
✅ 160 × 120 VOx Uncooled Thermal Sensor – Delivers clear thermal images with temperature measurement
✅ 3 mm Thermal Lens + 4 MP Optical Module – Wide-angle coverage with detailed visual context
✅ Temperature Measurement Accuracy – High precision (±8°C or ±2%, whichever is greater)
✅ Early Fire Detection – Identifies abnormal heat sources for proactive response
✅ Smart Video Analytics – Supports line crossing, intrusion detection, and region entrance/exit alerts
✅ IP66-Rated Weatherproof Design – Reliable outdoor performance in harsh environments
✅ Built-in Audio Alarm – Real-time event alerts for on-site notification
✅ H.265+ Video Compression – Efficient storage and network utilization
✅ Flexible Mounting Options – Adaptable for walls, poles, or ceilings
✅ Hik-Connect & iVMS Integration – Seamless remote access and system integration
Perfect for industrial sites, power plants, warehouses, and outdoor perimeters requiring intelligent thermal detection and 24/7 situational awareness.
Product Highlights
- Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance & exit
- Temperature exception alarm
- Fire detection algorithm

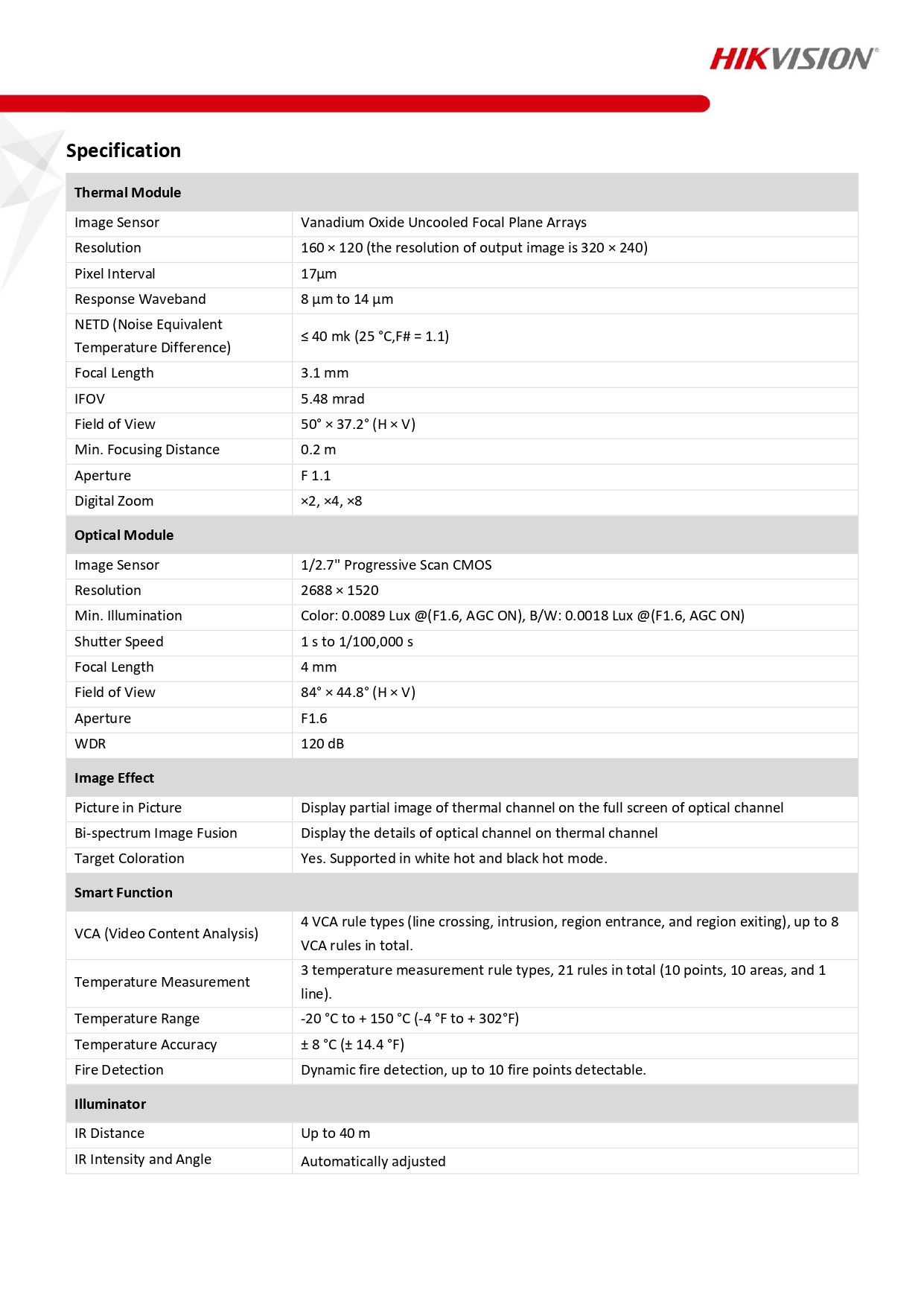

- 160 × 120 (the resolution of output image is 320 × 240) resolution 17 μm, VOx UFPA, NETD ≤ 40 mK (25 °C, F# = 1.1)
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
Product Catalogue
Product Warranty
2 Years
