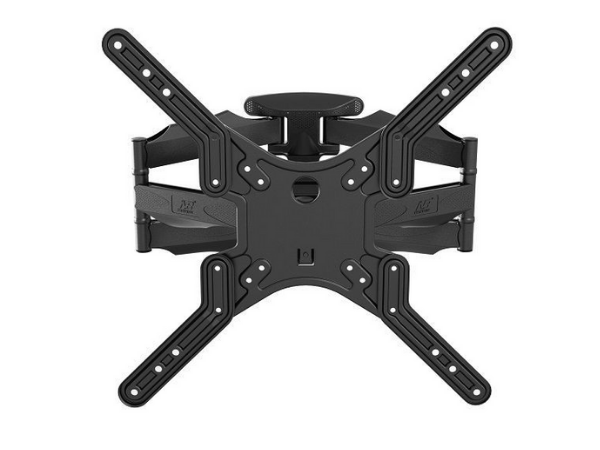

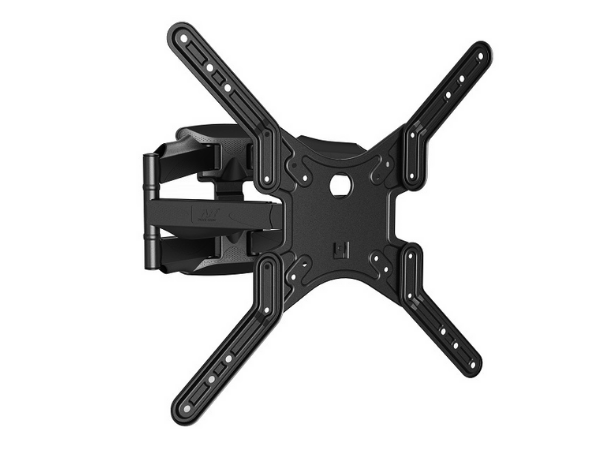

NB P5 Cantilever TV Monitor Wall Mount Bracket (Double Arm) for 32″ to 60″ Flat Panel Display


Purchase this product and earn 120 Points

Unit Sold : 11

SKU: P5 Category:


Product Introduction

The P5 cantilever TV mount is a popular design for consumers wishing to easily install their TV at home by themselves. The dual arm design adds strength and stability to the unit. With a sleek, high-quality powder coated finish, this unit allows for quick installation of an LCD/LED display onto the wall plate. The wall plate cover and cable integration system ensure a neat look. With this full-motion TV mount, you can easily tilt, extend, and rotate your screen to achieve the optimal viewing angle for any situation.
This low profile design can hold a flat panel TV close to the wall, only protruding by 42mm(1.7”). Quick installation and relocation make it convenient to move your TV to a different position, saving significantly on time.
This advanced design makes achieving the proper viewing angle easy and convenient. The cable management system makes your cable connections straightforward and neat. The standard accessories enable you to extend the VESA TV mount holes from 200x200mm to 400x400mm. The arm can extend to a maximum of 452mm.

Product Specifications

  • Material : SPCC with powder coating finishing
  • Suitable Screen Size :  32″ to 60″ Flat Panel Displays
  • VESA Compliances : 100×100, 200×100, 200×200, 400×200, 400x400mm.
  • Tilting Angle : -2°/+10°
  • Swivel Angle : +160°
  • Maximum Load Capacity : 36.4KG
  • Minimum Extension : 52mm
  • Maximum Extension : 460mm
  • Colour : Black

Product Video

Product Catalog

Product Warranty

1 Year

What’s in the Box?

  1. NB P5 Cantilever TV Monitor Wall Mount Bracket x 1
  2. Installation Accessories x 1
  3. Installation Manual x 1
