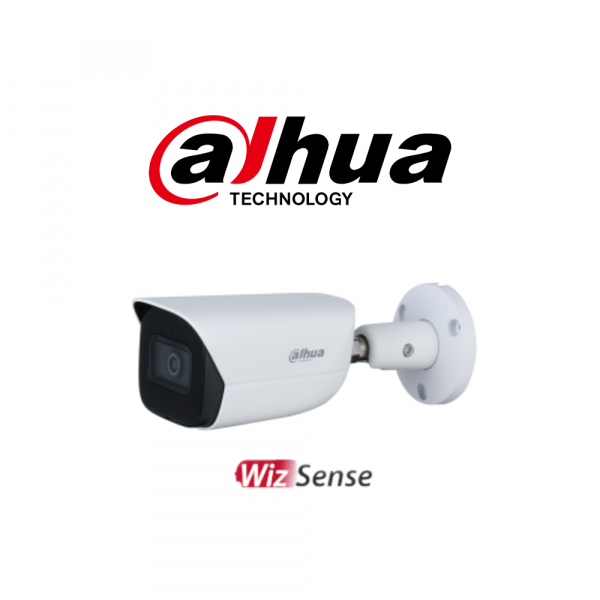

DAHUA HFW3541E-AS 5MP Lite AI IR Bullet Network Camera

RM707.90

or 3 payments of RM235.97 with

Purchase this product and earn 708 Points

Unit Sold : 70

SKU: HFW3541E-AS Categories: ,

Description

Product Highlights

  • 1/2.7″ 5MP STARVIS CMOS @ 20fps; Starlight
  • 0.005Lux
  • H.265+ Triple Stream encoding
  • IR LED up to 50m
  • Built-in Microphone
  • Micro SD up to 256GB
  • Perimeter Protection, SMD Plus, Alarm 1/1, Audio 1/1
  • Lens: 3.6mm Fixed
  • True WDR (120dB), 3DNR
  • DC12V
  • PoE
  • IP67

Product Catalogue


Product Specification

Camera
Image Sensor 1/2.7”5Megapixel progressive CMOS
Max. Resolution 2592 (H) ×1944 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 [email protected] (Color, 30IRE)

0.0005 [email protected] (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio > 56 dB
Illumination Distance 50 m (164.0 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.6
Field of View 2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°

3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°

6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°

Iris Type Fixed
Close Focus Distance 2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
6 mm: 3.2 m (10.5 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.8 ft)

5.6 m

(18.4 ft)

3.6mm 80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.3 ft)

6mm 120.0 m (393.7 ft) 48.0 m

(157.5 ft)

24.0 m

(78.7 ft)

12.0 m (39.4ft)
Professional, Intelligent
Perimeter Protection Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG(only supported

by sub stream)

Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream (2592 × [email protected]–20 fps)

(2688 × [email protected]–25/30 fps)

sub stream(704 × [email protected]–25 fps/704 × [email protected]–30 fps)

third stream(1280 × [email protected]–25/30 fps)

Stream Capability 3 streams
Resolution 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G726
Alarm
Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;

Genetec

Scene Self-adaptation (SSA) Yes
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Browser IE: IE8, IE9, IE11

Chrome

Firefox

Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input 1-channel (RCA port)
Audio Output 1-channel (RCA port)
Alarm Input 1 channel in: 5mA 3V–5V DC
Alarm Output 1 channel out: 300mA 12V DC
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption < 5.4W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Conditions -40°C to +60°C (-40°F to +140°F)
Protection Grade IP67
Structure
Casing Metal
Dimensions 192.7 mm × 70.5 mm × 66.4 mm

(7.6”×2.8”×2.6”) (L × W × H)

Net Weight 590 g (1.3lb)
Gross Weight 780 g (1.7lb)

Product Warranty

2 years
