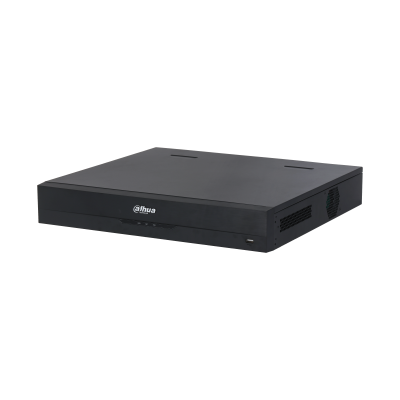

DAHUA NVR4416-16P-4KS2/I 16CH 1.5U 4K AI WizSense NVR with 16-port POE

RM2,432.90

or 3 payments of RM810.97 with

Purchase this product and earn 2433 Points

Unit Sold : 24

SKU: NVR4416-16P-4KS2/I Categories: ,

Description

Product Highlights

  • Up to 16MP resolution
  • Max 160Mbps Recording bandwidth (with AI Enabled)
  • Perimeter, Face Detection, Face Recognition, ANPR, People Counting, SMD Plus
  • VGA + HDMI, Alarm 16/6, Audio 1/1, RS232, RS485
  • Supports 4 x HDD up to 10TB each disk
  • 2 x USB ports, GE

Product Catalogue


Product Specification

System

Main Processor

Industrial embedded micro-processor

Operating System

Embedded Linux

Operation Interface

Web; local GUI

Perimeter Protection by Camera

Performance

16 channels

AI Search

Search for pictures by channel, time and event type

SMD Plus by Camera

Performance

16/32 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

16/32

Network Bandwidth

200 Mbps for access, 200 Mbps for storage and 96 Mbps for forwarding

Resolution

8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more

Decoding Capability

8 [email protected] (30 fps)

Video Output

HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA: 1920 × 1080; 1280 × 1024; 1280 × 720

Multi-screen Display

16-channel: 1/4/8/9/16
32-channel: 1/4/8/9/16/25/36

Third Party Camera Access

Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more

Compression

Video

Smart H.265+; Smart H.264+; H.265; H.264

Audio

PCM; G.711A; G.711U; G.726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback

1/4/9/16

Record Mode

Manual; schedule (general; MD; alarm; MD & alarm; intelligent)

Storage Method

Local HDD and network

Backup

USB device

Playback Function

1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; privacy masking; video loss; PIR alarm; IPC alarm

Anomaly Alarm

Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly

Intelligent Alarm

Perimeter protection; SMD; people counting; heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; buzzer; log; preset; email

External Port

Audio Input

1 channel, RCA connector

Audio Output

1 channel, RCA connector, which support voice intercom output

HDD

4 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

Alarm Input

16 channels

Alarm Output

4 channels

RS-232

1 channel, used to debug and pass through serial data

RS-485

1 channel, used to control PTZ, and it supports multiple protocols

USB

1 front USB 2.0 port, 1 rear USB 3.0 port

HDMI

1

VGA

1

Network

1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port

PoE

16 ports (IEEE802.3at/af)

General Parameter

Power Supply

Single, 100V–240V AC, 50 Hz–60 Hz

Power Consumption

NVR: < 13.7W (without HDD)
PoE: Max 25.5W for single port, 150W in total

Net Weight

4.7 kg (10.4lb) (without HDD)

Gross Weight

7.5 kg (16.5 lb) (without HDD)

Product Dimensions

440.0 mm × 414.6 mm × 76.0 mm (17.3″ × 16.3″ × 3.0″)

Package Dimensions

522 mm × 492 mm × 200 mm (20.6″ × 19.4″ × 7.9″)

Operating Temperature

-10°C to +55°C (+14°F to +131°F)

Storage Temperature

0°C to +40°C (+32°F to +104°F)

Operating Humidity

10%–93% (RH)

Storage Humidity

30%–85% (RH)

Operating Altitude

3,000 m (9,843 ft)

Certifications

CE: EN55032; EN55024; EN50130-4; EN60950-1
FCC: Part 15 Subpart B; ANSI C63.4-2014
UL: UL 60950-1


Product Warranty

2 years
