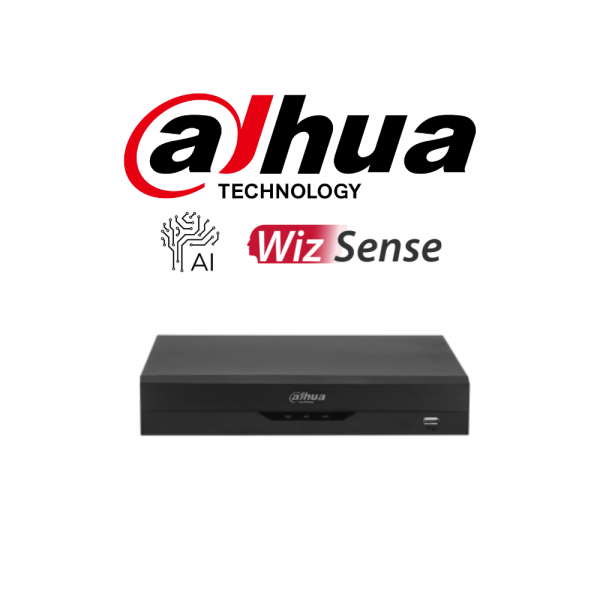

DAHUA XVR5104HS-4KL-I3 4 Channels Penta-brid 4K-N/5MP Compact 1U 1HDD WizSense Digital Video Recorder

RM629.80

or 3 payments of RM209.93 with

Purchase this product and earn 630 Points

Unit Sold : 62

SKU: XVR5104HS-4KL-I3 Categories: ,

Description

Product Highlights

  • H.265+/H.265 dual-stream video compression
  • Supports all-channels AI Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth
  • Up to 4 channels video stream (analog channel) Perimeter Protection
  • Up to 4 channels video stream (analog channel) SMD Plus
  • Up to 1 channel video stream (analog channel) human face recognition
  • IoT & POS functionalities

Product Catalogue




Product Specification

System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model : 1 channel, 10 IVS for each channel
General Model : 4 channels, 10 IVS for each channel
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 1 channel (up to 8 face images/s)
Face Recognition
Face Database Capacity Up to 10 face databases and 20,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels) 1 channel
SMD Plus
SMD Plus by Recorder 4-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input 4 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input 1. CVI: 4K, 6 MP, 5 MP, 4 MP, [email protected]/30 fps, [email protected]/60 fps, [email protected]/30 fps.
2. TVI: 4K, 5 MP, 4 MP, 3 MP, [email protected]/30 fps, [email protected]/30 fps.
3. AHD: 4K, 5 MP, 4 MP, 3 MP, [email protected]/30 fps, [email protected]/30 fps.
IP Camera Input Up to 8 channels of IPC access

4 IP channels by default + 4 channels (analog channels are converted to IP channels)

incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity Main stream: All channel 4K (1 fps–7 fps); 6MP (1 fps–

10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps);

Sub steram: 960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps)

Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display When IP extension mode not enabled: 1/4

When IP extension mode enabled: 1/4/8/9

Third-party Camera Access ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video Compression AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access iOS; Android
Interoperability ONVIF 21.06; CGI Conformant
Browser Chrome
IE9 or later
Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm Motion detection, video loss, tampering
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input 1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-485 1 port, for PTZ control
USB 2 USB ports (USB 2.0)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 2 A
Power Consumption <7 W
Net Weight 0.53 kg (1.17 lb)
Gross Weight 1.07 kg (2.36 lb)
Product Dimensions 260.0 mm × 237.9 mm × 47.6 mm (10.24” × 9.37” × 1.87”) (W × D × H)
Packaging Dimensions 333.0 mm × 315.0 mm × 89.0 mm (13.11″ × 12.40″ × 3.50″) (W× D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 0%–90% (RH)
Installation Desktop
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024

Product Warranty

2 years
